Lowrance HDI SKIMMER XDCR 83/200 455/800KHZ

DownScan Imaging™

High-frequency 455/800 kHz DownScan Imaging provides a life-like representation of the water column, bottom, and any structure beneath your vessel: see fish, rocks, weeds, and wrecks clearly pictured your multifunction display. DownScan is a powerful tool for locating fish-holding structures, finding wrecks or reefs to dive, or conducting searches and surveys.

Depth/Temperature

One sensor does it all. Able to measure both depth and temperature in a single package, the HDI Skimmer 455/800 simplifies installation and requires just one connection to your echosounder module or multifunction display.

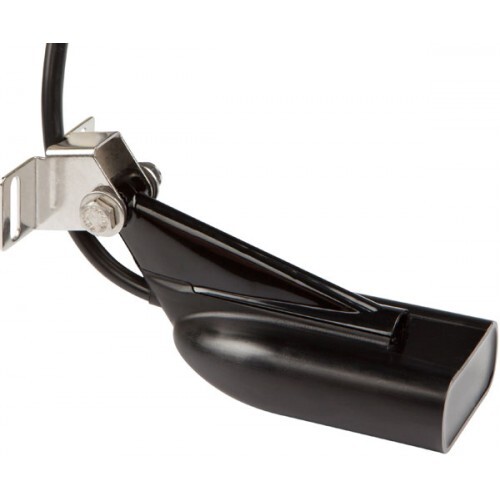

Mounting

The HDI Skimmer 455/800 is suitable for transom or trolling-motor mounting with any hull type. Transom-mounted transducers are designed for smaller outboard and I/O boats, and are well suited to planing hulls. Transom mounting offers simple installation and maintenance, and the transducer can be adjusted easily to compensate for transom angle. Trolling motor-mounting is quick and easy, providing superior performance to in-hull (shoot-thru) installations while requiring no holes to be drilled in the hull or transom.

Details:

  • 455 kHz with 6.4° beam width
  • 800 kHz with 12° beam width
  • Up to 90 m (300 ft) range at 455 kHz
  • 1 internal broadband ceramic
  • Transom/Trolling Motor-mounted
  • Suitable for any hull
  • Ideal for outboards and I/O vessels up to 8 m (25 ft) in length
  • Recommended for use with the SonarHub sounder module & Simrad NSS evo2 multifunction displays

Part no. 000-10976-001

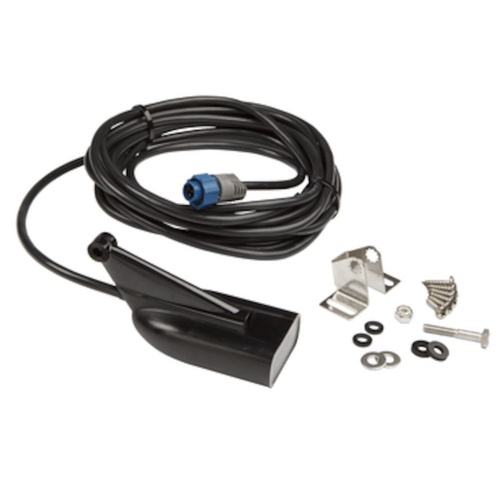

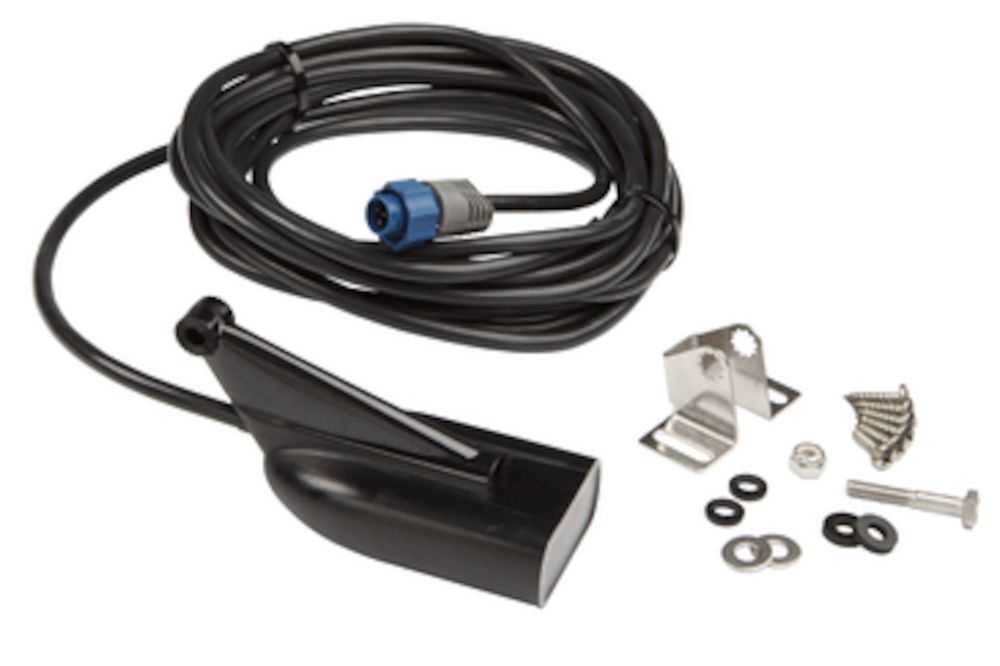

Package includes:

  • Lowracne transducer part#: 000-10976-001





SKU 000-10976-001
Model # 000-10976-001
Barcode # 9420024121900
Brand Lowrance
Artist / Author Lowrance Simrad HDI Skimmer XDCR 83/200 455/800KHZ Up to 90m (300 ft) range at 455 kHz Part#: 000-10976-001
Shipping Weight 0.7000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.170m
Shipping Cubic 0.002720000m3
Type Lowrance Simrad HDI Skimmer XDCR 83/200 455/800KHZ Up to 90m (300 ft) range at 455 kHz Part#: 000-10
Format Lowrance Simrad HDI Skimmer XDCR 83/200 455/800KHZ Up to 90m (300 ft) range at 455 kHz Part#: 000-10976-001
