Inflatable Boat Swing Davits

100KG Rating

Ideal sturdy piece of lifting equipment suitable for raising dinghies, inflatables or outboard engines.

Manufactured from 316-grade stainless steel with a polished finish, these davits are weatherproof and corrosion-resistant.

The weight rating of 100KG is the combined weight for the pair.

Ideal sturdy piece of lifting equipment suitable for raising dinghies, inflatables or outboard engines. Manufactured from 316-grade stainless steel with a polished finish, these davits are weatherproof and corrosion-resistant.

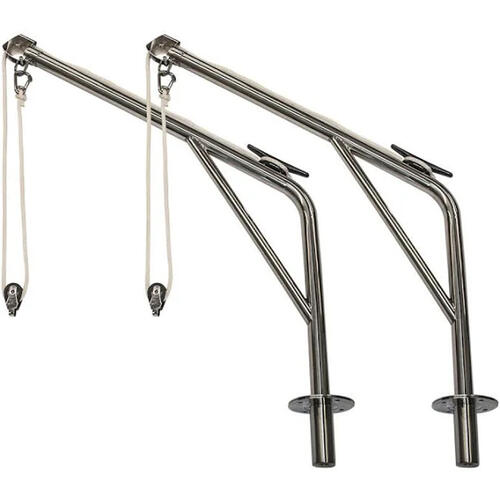

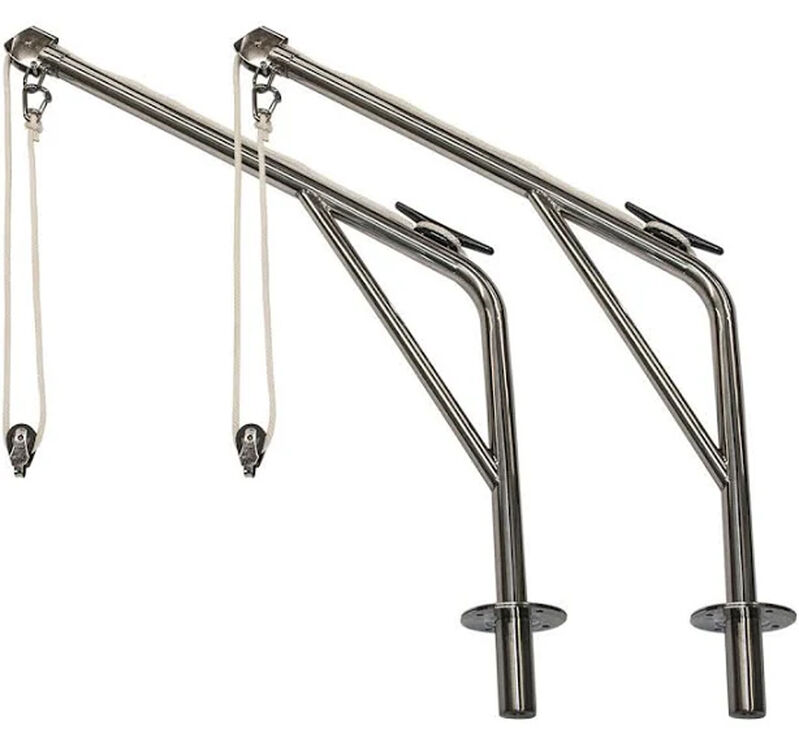

Easy to install, this kit is supplied as a pair of davits with recess mounting sockets, pulley blocks and nylon rope. The arms swivel around 360° and can be removed easily from the deck mount for storage, providing more space on the deck and transom when not in use.

Using a pair of davits can result in fewer boat repairs and will assist with lifting equipment safely and worry-free.

Features:

Strong, sturdy and stable piece of lifting equipment
Suitable for lifting dinghies, inflatables or outboard engines
Ability to lift without worry
Results in fewer repairs and maintenance on the boat
Weatherproof and corrosion-resistant
Removable arms to provide more space on deck and transom
Arms swivel around 360°
Easy to install – mounting bolts must be purchased separately.
100KG weight rating: the combined weight for the pair.

The kit includes:

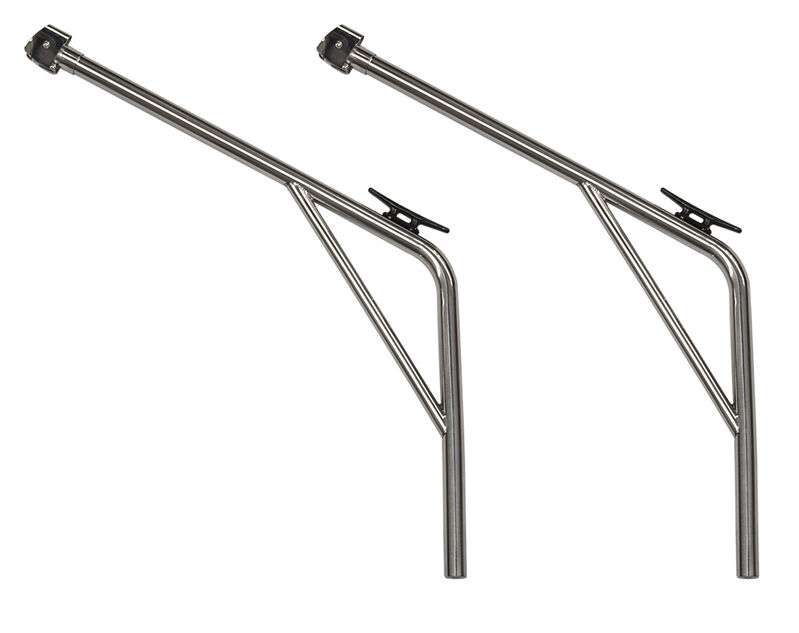

2 x Davit Arms

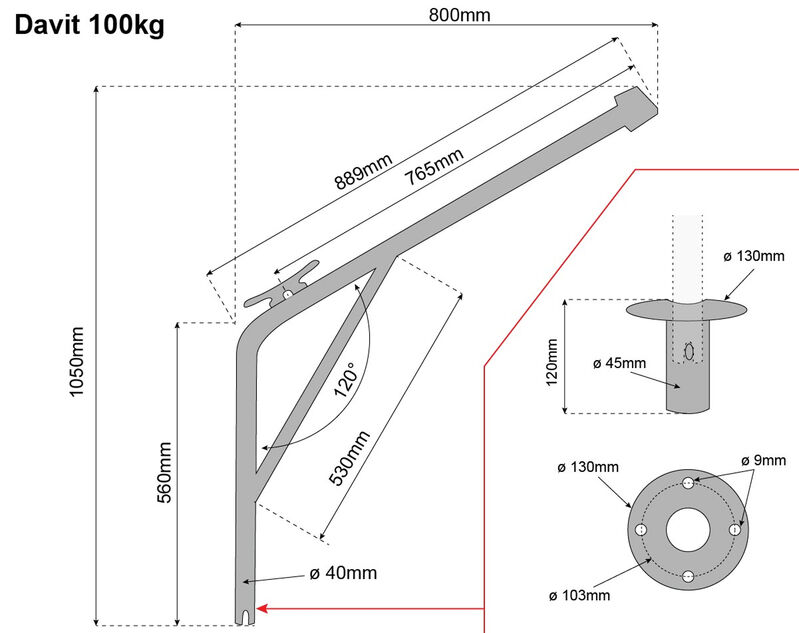

Total height: 1050mm
Total width: 800mm
Tube wall thickness: 1.5mm

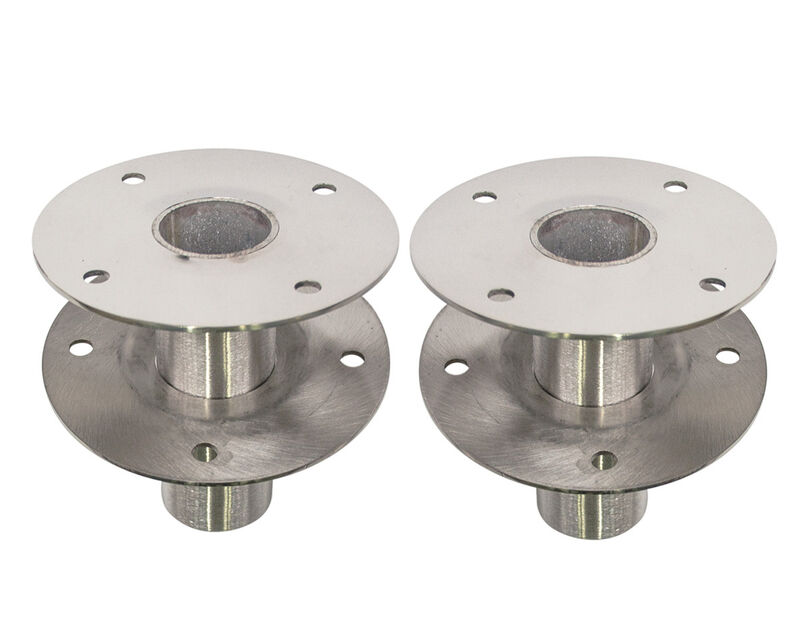

2 x Removable Bases
2 x under-deck mounting plates (for bases)

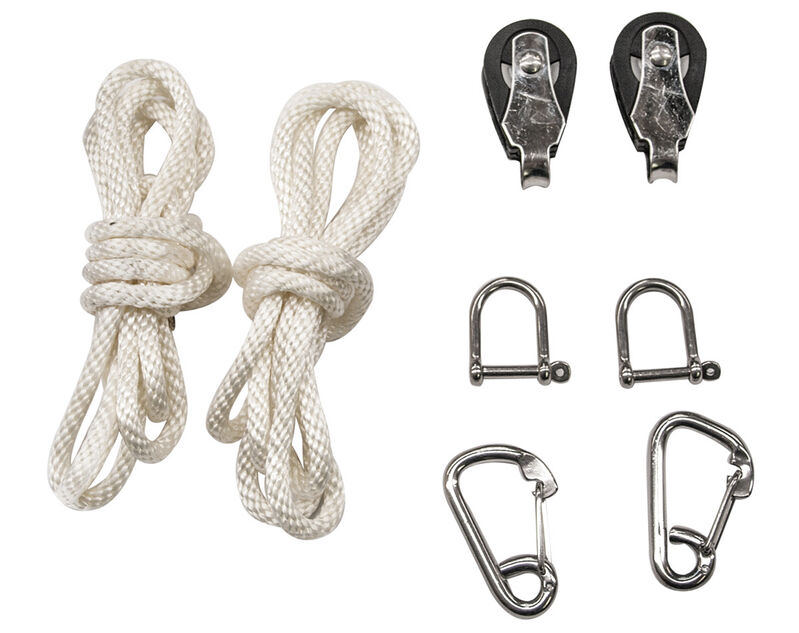

2 x 8mm Snap Hooks
2 x 6mm ‘D’ Shackles
2 x 40mm Pulleys
2 x 8mm Nylon ropes (Length: 2.5m)

*Note: Mounting bolts are not supplied due to varying installations / deck thicknesses.

What’s in the box:

2 x Davit Arms (total height: 1050 mm / total width: 800mm / tube wall thickness: 1.5mm)
2 x Removable Bases
2 x under-deck mounting plates (for bases)
2 x 8mm Snap Hooks
2 x 6mm ‘D’ Shackles
2 x 40mm Pulleys
2 x 8mm Nylon ropes (Length: 2.5m)

SKU	01972
Model #	01972
Brand	Island
Artist / Author	Mr Boats mr accessories
Shipping Weight	25.0000kg
Shipping Width	0.400m
Shipping Height	0.150m
Shipping Length	1.350m
Shipping Cubic	0.081000000m3
Unit Of Measure	ea
Type	Boat Davit Systems
Format	Complete 2-Piece Swivel Kit: Includes 316 Stainless Arms, Removable Bases, Under-Deck Plates, 8mm Nylon Ropes, Pulleys, Snap Hooks, & D-Shackles. Designed for easy DIY mounting on swim platforms.
