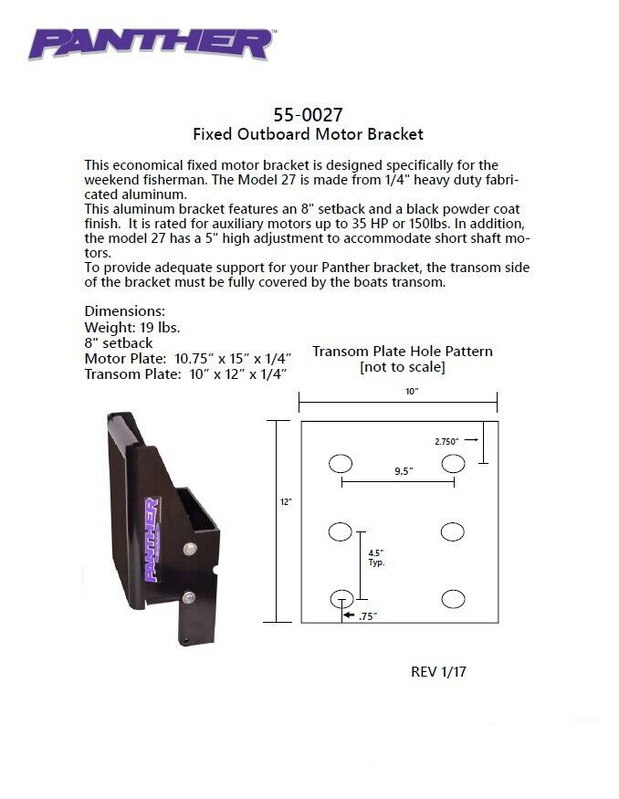

Outboard Motor Bracket

Fixed Aluminium suits heavier 4 stroke engines

Part#: 550027

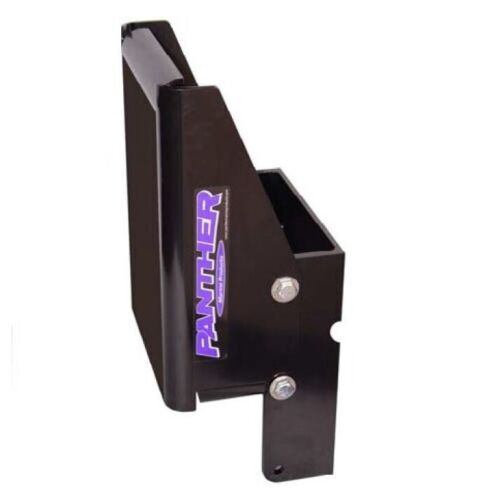

The fixed auxiliary motor bracket is designed for adjustable mount on the transom. Designed for the heavier 4-stroke motors. The Model 27 is made from 1/4" heavy duty fabricated aluminium.

This aluminium bracket features an 8" setback and a black powder coat finish. It is rated for auxiliary motors up to 35 HP or 65kg. In addition, the model 27 has a 5" high adjustment to accomodate short shaft motors. To provide adequate support for your Panther bracket, the transom side of the bracket must be fully covered by the boats transom.

5" height adjustment will accommodate long- and short-shaft motors.

Specifications:

8 1/2” setback - weighs 19 lbs/8.6kg

Motor Plate: 10.75" x 15" x 1/4"

Transom Plate: 10" x 12" x 1/4"

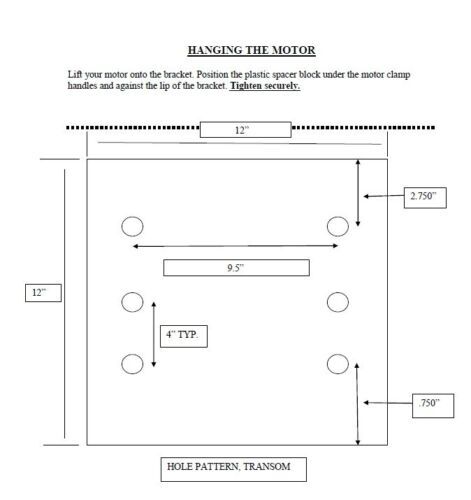

                      Transom Plate Hole Pattern (not to scale)
