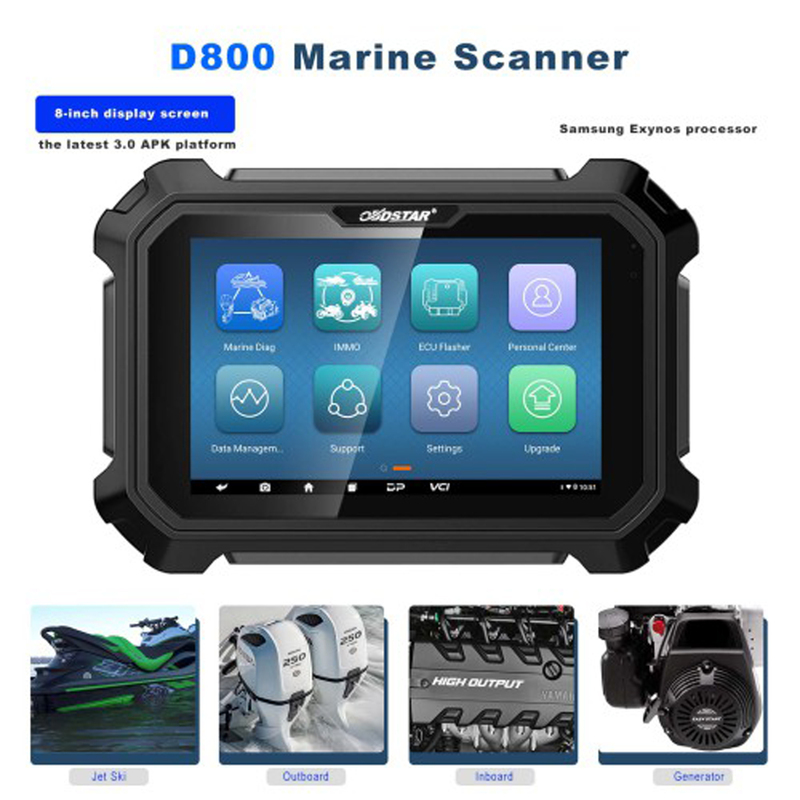

The OBDSTAR D800 B is OBDSTAR's newest device for marine (Outboards, Sterndrives "Inboards" & Jetski's) intelligent diagnosis.

D800 is OBDSTAR's new generation device for marine (jet ski/ outboard/ inboard/ generator) intelligent diagnosis.

This version is the FULL version which includes most OUTBOARDS STERNDRIVES / INBOARDS AND JETKIS (PWC) Models

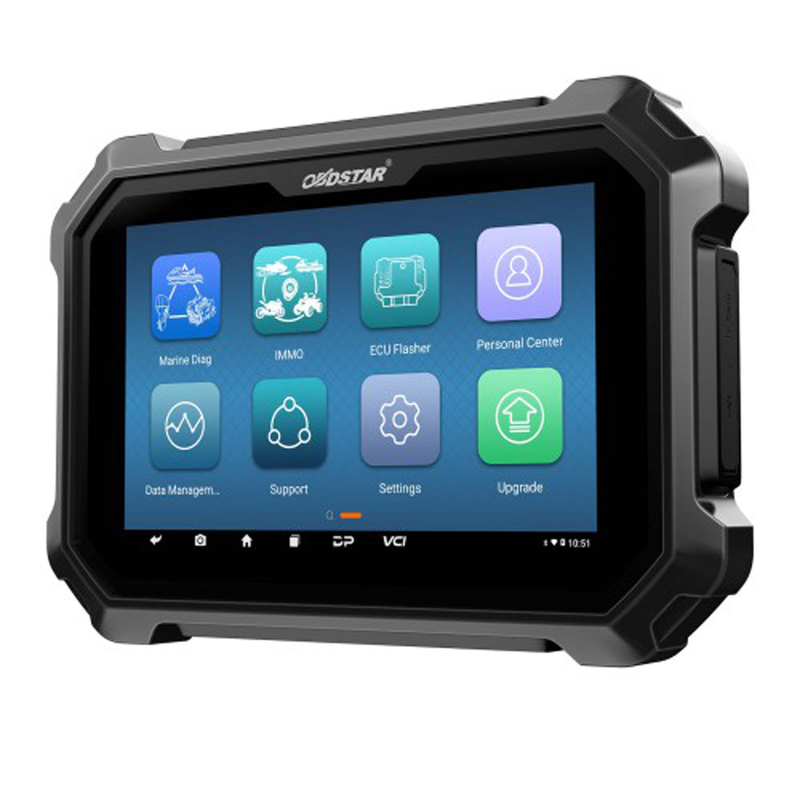

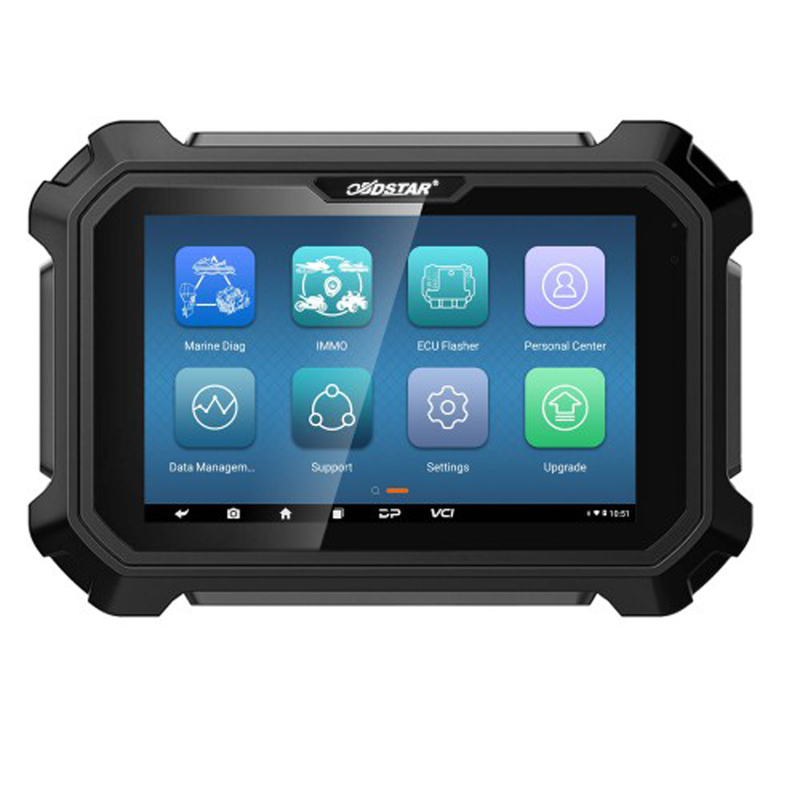

Based on Samsung Exynos processor, it is equipped with an 8-inch display screen, which is extremely fast and smooth.

D800 adopts the latest 3.0 APK platform and has shortcut functions such as auto-identification, intelligent retrieval, and one-click feedback. The equipment, with its fast upgrade performance and built-in help materials, is a good helper for marine maintenance engineers!

D800 Features

1. New android 5.1.1 operation system;
2. Simple and intuitive menu guidance allows you to quickly master the equipment operation;

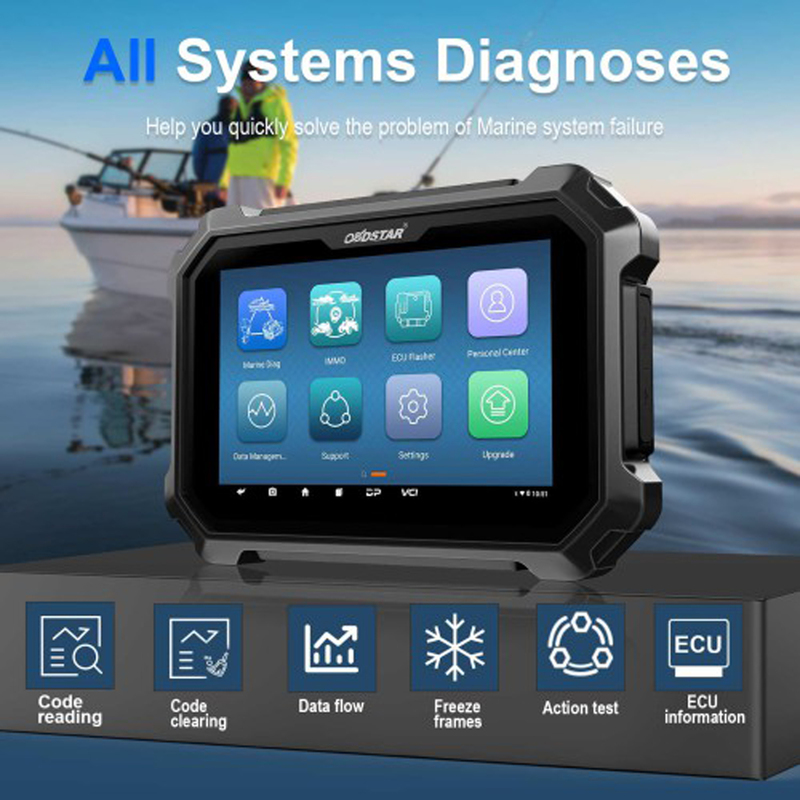

3. Provide complete diagnostic functions, including ECU information, code reading, code clearing, data flow, freeze frames, action tests, setting, coding, etc.
4. Record and play back real-time flow, quickly and accurately locate sensor and component faults;
5. Wi-Fi connection to the internet, one-click software upgrade;
6. One-click remote function; OBDSTAR technical staff remote assistance.
7. Free upgrade for one year.
8. Language: English only.

D800 Advanced Functions

1. The OBDSTAR mobile APP integrates functions such as diag socket location, flash code query, technical bulletin, manual service function (service lamp reset), basic parameters, etc., working with D800 to make marine diagnosis more accurate and efficient (some functions are only available for D800 users to check for free)

2. The exclusive interactive wiring diagram and electrical appliance description query function ensures you are equipped for any job with maximum efficiency.

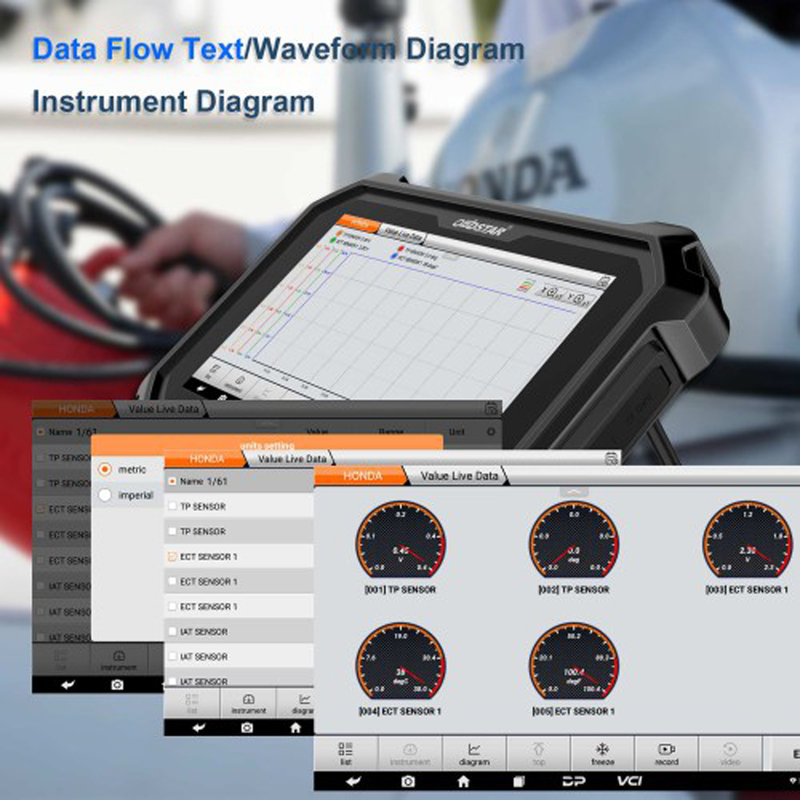

3. Various data flow display modes such as text, waveform diagram and instrument diagram allow you to easily analyse faults.

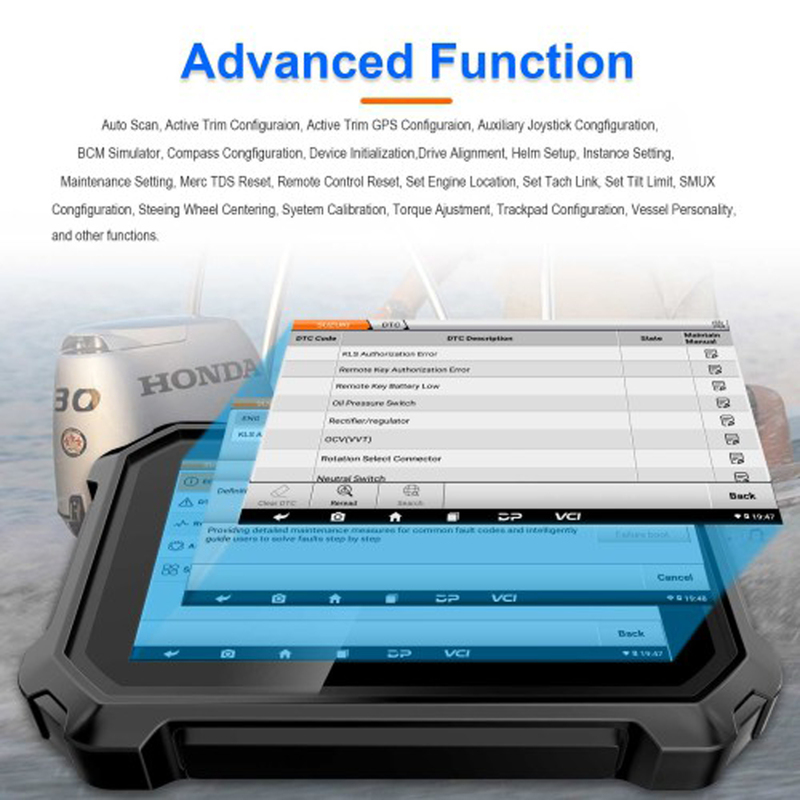

4. Auto Scan, Active Trim Configuration, Active Trim GPS Configuration, Auxiliary Joystick Configuration, BCM Simulator, Compass Configuration, Device Initialization, Drive Alignment, Helm Setup, Instance Setting, Maintenance Setting, Merc TDS Reset, Remote Control Reset, Set Engine Location, Set Tach Link, Set Tilt Limit, SMUX Configuration, Steeing Wheel Centering, Syetem Calibration, Torque Ajustment, Trackpad Configuration, Vessel Personality, and other functions.

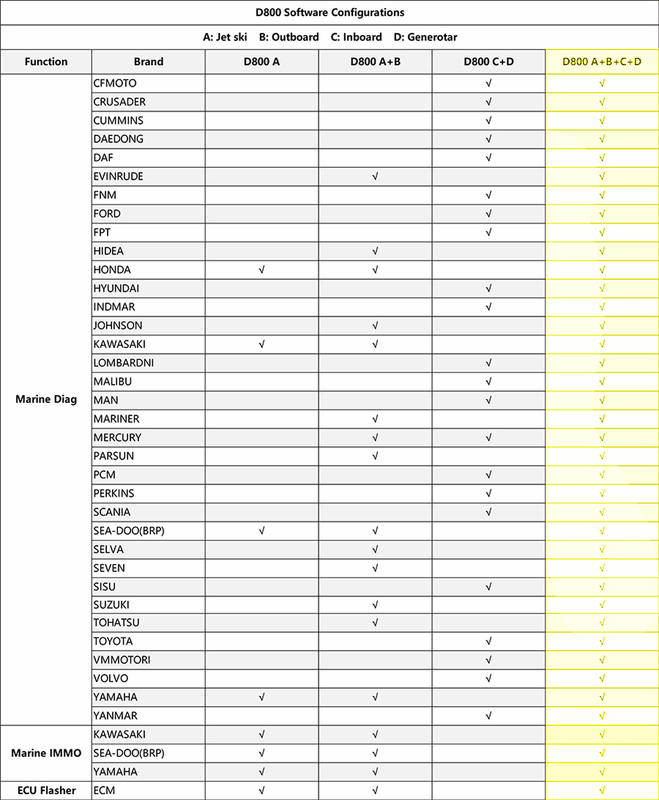

D800 Supported Brands:
D800 is OBDSTAR's new generation device for marine (jet ski/ outboard/ inboard/ generator) intelligent diagnosis.

Based on Samsung Exynos processor, it is equipped with an 8-inch display screen, which is extremely fast and smooth.

D800 adopts the latest 3.0 APK platform and has shortcut functions such as auto-identification, intelligent retrieval, and one-click feedback. The equipment, with its fast upgrade performance and built-in help materials, is a good helper for marine maintenance engineers!

OBDSTAR D800 Specifications:

Operation system Android 5.1.1
CPU Exynos4418 qual core ARM cortex A9
Battery 3700mA, rechargeable polymer lithium battery
Extension memory card 32G micro SD (TF) card supported
Storage capacity 32GB
LCD 8.0 inch
LCD resolution 1280*800
Touch screen Capacitive touch screen
Wifi Supported
Camera 5 mega rear view camera
Working temperature -10℃～55℃ (14℉～131℉)
Storage temperature -20℃～70℃ (-4℉～158℉)
Weight 1kg (main unit)
Dimension 254mm*174mm*35mm

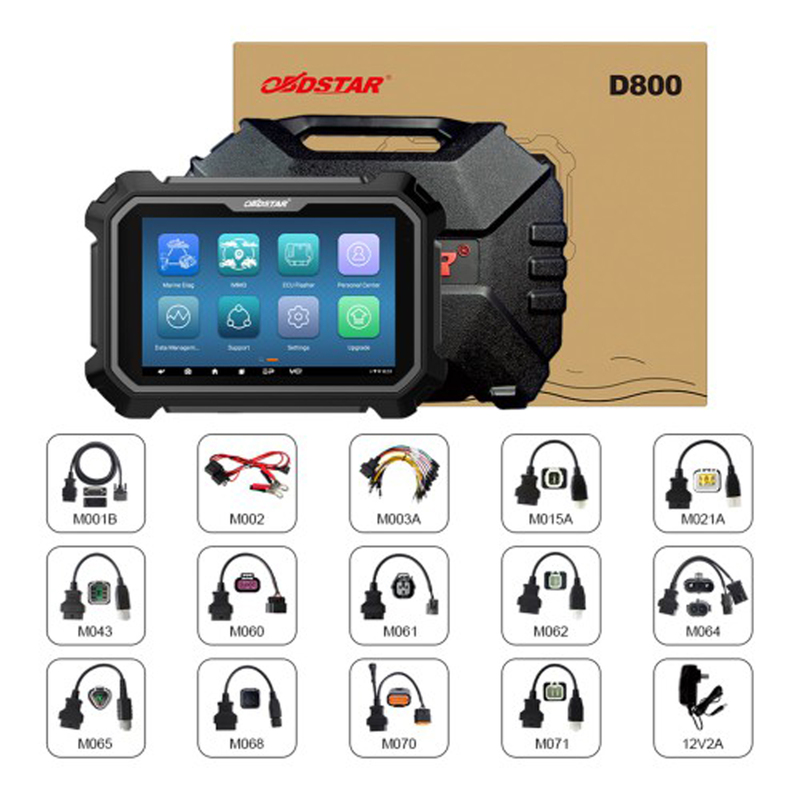

Package Includes:

  • 1pc x OBDSTAR D800 Tablet
    1pc x M000A 4 meters extension cable
    1pc x M001B main cable
    1pc x M002D 6 meters power cable
    1pc x M003A multi functional jumper
    1pc x M015A adapter for Honda
    1pc x M021A adapter for PARSUN
    1pc x M043 adapter for BRP
    1pc x M060 adapter for MERCURY
    1pc x M061 adapter for YAMAHA
    1pc x M062 adapter for SUZUKI
    1pc x M063 adapter for PCM-6
    1pc x M064 adapter for MERCURY
    1pc x M065 adapter for EVINRUDE
    1pc x M068 adapter for KAWASAKI
    1pc x M070 adapter for TOHATSU
    1pc x M071 adapter for TOHATSU
    1pc x M072 adapter for MERCRUISER
    1pc x M073 adapter for INDMAR-6
    1pc x M074 adapter for YANMAR-3
    1pc x M075 adapter for YANMAR-6
    1pc x M078 adapter for MERCURY DIESEL-9
    1pc x M080 adapter for CATERPILLAR-9
    1pc x M081 adapter for MAN-8
    1pc x M083 adapter for CUMMINS-9
    1pc x M084 adapter for SCANIA-4
    1pc x M086 adapter for VOLVO-6
    1pc x 12V 2A Charger

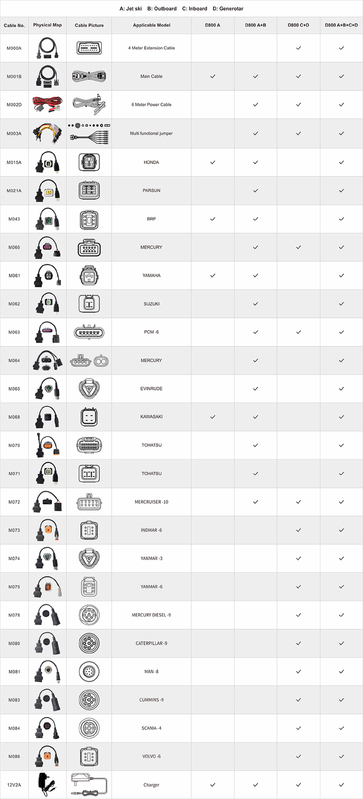

D800 A+B+C+D accessories

The product will come with a one-year warranty

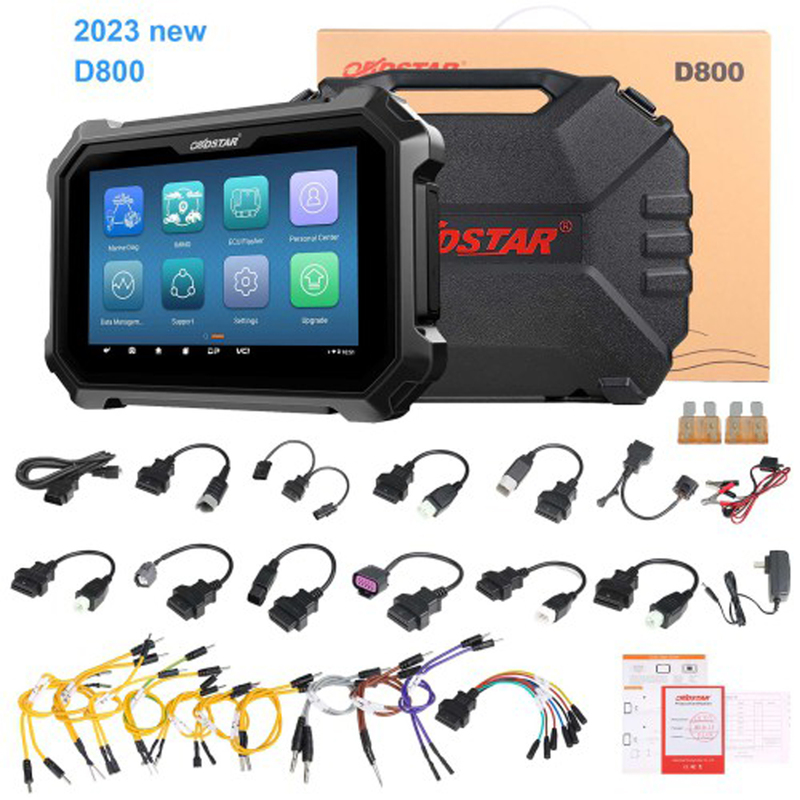

Package Includes:

  • 1pc x OBDSTAR D800 FULL Version Tablet
  • 1pc x M000A 4 meters extension cable
  • 1pc x M001B main cable
  • 1pc x M002D 6 meters power cable
  • 1pc x M003A multi functional jumper
  • 1pc x M015A adapter for Honda
  • 1pc x M021A adapter for PARSUN
  • 1pc x M043 adapter for BRP
  • 1pc x M060 adapter for MERCURY
  • 1pc x M061 adapter for YAMAHA
  • 1pc x M062 adapter for SUZUKI
  • 1pc x M063 adapter for PCM-6
  • 1pc x M064 adapter for MERCURY
  • 1pc x M065 adapter for EVINRUDE
  • 1pc x M068 adapter for KAWASAKI
  • 1pc x M070 adapter for TOHATSU
  • 1pc x M071 adapter for TOHATSU
  • 1pc x M072 adapter for MERCRUISER
  • 1pc x M073 adapter for INDMAR-6
  • 1pc x M074 adapter for YANMAR-3
  • 1pc x M075 adapter for YANMAR-6
  • 1pc x M078 adapter for MERCURY DIESEL-9
  • 1pc x M080 adapter for CATERPILLAR-9
  • 1pc x M081 adapter for MAN-8
  • 1pc x M083 adapter for CUMMINS-9
  • 1pc x M084 adapter for SCANIA-4
  • 1pc x M086 adapter for VOLVO-6
  • 1pc x 12V 2A Charger





SKU D800FULL
Model # D800
Brand ODB Star
Artist / Author OBDSTAR D800 B Diagnostic Scan Tool for Marine Jet Ski Outboard 2023 Full Version
Shipping Weight 5.8000kg
Shipping Width 0.165m
Shipping Height 0.390m
Shipping Length 0.508m
Shipping Cubic 0.032689800m3
Type OBDSTAR D800 B Diagnostic Scan Tool for Marine Jet Ski Outboard 2023 Full Version
Format OBDSTAR D800 B Diagnostic Scan Tool for Marine Jet Ski Outboard 2023 Full Version
