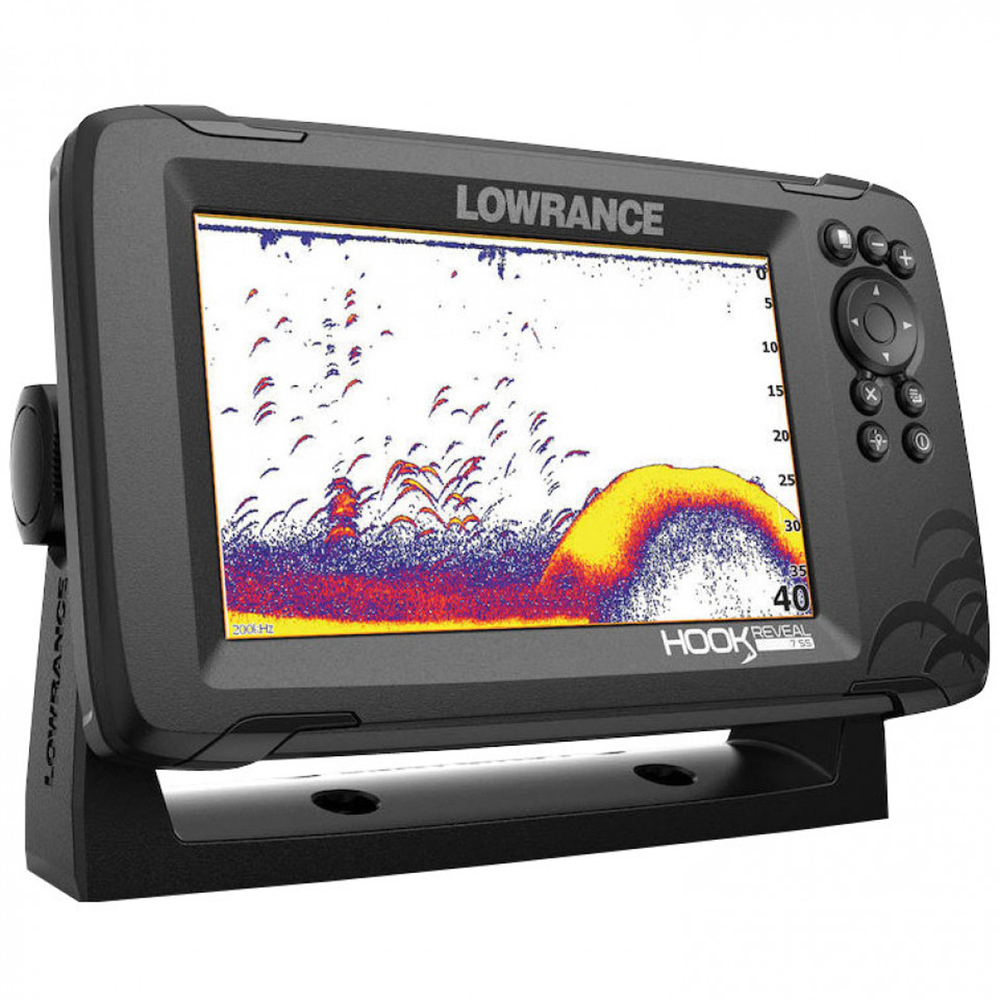

The HOOK Reveal makes fishing easier, delivering powerful performance with proven fish-finding tools including, Autotuning Sonar, High CHIRP, DownScan Imaging™, improved deep water performance and now FishReveal™, which makes fish easier to see by combining the benefits of Lowrance CHIRP sonar and DownScan Imaging™ on one display.

Whether you’re fishing a local spot or unfamiliar water, find the best fishing areas with preloaded Australian and New Zealand Coastal mapping from C-MAP or map uncharted water in real time with C-MAP Genesis Live.

Features

• FishReveal™ - See fish light up against picture perfect DownScan™ views of fish-holding structure
• Genesis Live Real-Time Mapping
• Autotuning sonar
• Double the sonar coverage of traditional fishfinders
• SplitShot transducer with High CHIRP and DownScan Imaging™
• Splitscreen functionality
• Preloaded AUS/NZ chart
• 7-inch SolarMAX™ Display
• New fishfinding colour palettes
• Optimised keypad with one-touch access to key features
• Mapping options include C-MAP, C-MAP Genesis, Navionics® and more
• microSD card slot
• Easy front-dash or gimbal-bracket mount

Specifications

Screen Brightness: >1000 NITS

Weight: 1.25 lb. (0.57 kg)

Power Consumption max: 0.9A @ 13VDC with backlight on full

Power Consumption typical: 0.9A @ 13VDC with backlight on full

Power Consumption min: 0.9A @ 13VDC with backlight on full

GPS: 1 Hz GPS GLONASS WAAS EGNOS MSAS

Warranty Period: 1 Year

Shock Vibration: 100,000 cycles of 20 G

Compass Safe: 12" (300mm)

Supply Voltage: 12v DC (10.8-17VDC)

Waypoints, Routes, Tracks: 3000 Waypoints 100 Routes 100 Trails

Time to First Fix: 30s

Storage Temperature Range: (-20°C to 60°C )

Operating Temperature Range: (-15°C to 55°C )

Recommended Fuse Rating: 5A

Humidity: 60°C, 95% relative humidity (RH) for 18 hours

Dimensions W x H x D:  (236.4 mm) x (164.2 mm) x (112.3 mm)

Viewing Angles: 80° top/bottom, 85° left/right

Display Resolution: 800 x 480

Cartography included: C-Map Australia New Zealand Charting

Charts supported: C-MAP Lake Insight HD C-MAP Insight Pro C-MAP (MAX N, MAX N+) C-MAP Genesis Genesis Live C-MAP Precision Contour HD (AMER ONLY) Navionics (Gold, NAV+ Platinum+) Insight (Pro and HD) Lowrance Regional Mapping Partners (No Photo/Satellite Overlay)

Correction: DGPS, WAAS

Approvals Compliance: FCC, Industry Canada, Radio Equipment Directive, ACMA, RSM

Mounting Type: Gimbal Bracket Front Dash Flush Mount

Sonar Compatibility: Integrated: CHIRP Broadband DownScan

Waterproofrating: IPX7 with card door closed

Interface: Keypad: 8-way directional keypad Zoom +/- Exit Enter Menu Waypoint Cursor Power Light Pages

SD Card Storage: Micro SD Card (32 gb Max)

Backlight Colour: Pure White LED
