OUTBOARD HYDROFOILS LARGE SIZE

Fits most 40hp Motors and above

The SPORT Large Hydrofoils are the best way to improve performance and fuel efficiency without compromising performance or speed. Each of these hydrofoils is made from a solid polypropylene polymer, which is far stronger and rigid than conventional plastic hydrofoils, yet are still lightweight and low profile.

The unique shape of the hydrofoil helps keep water around the propeller, ensuring a reduction in cavitation and lowering the boats plane speed. The design also ensures water is kept in a linear path as the boat travels at speed, reducing engine vibration, and keeps the boat nice and stable.

This hydrofoil will suit most outboards and sterndrives 40hp and above in horsepower.

These Sport Foils are a Generic copy of the SE SPORTS SE300 Brand

Specifications

Dimensions

• Length: 403.61mm
• Width: 431.04mm
• Length (Mounting cut-out): 213.86mm
• Width (Mounting cut-out, centre): 57.91mm
• Width (Mounting cut-out, outside): 104.64mm

Sizing

• Suits most 40hp & above outboard and sterndrive engines.
• Except these models: Mercury 40 / 50 / 60hp Four strokes with 165.1mm cav plate width
• 350hp Yamaha with 184.15mm cav plate width
• Various 200-300hp range in Evinrudes

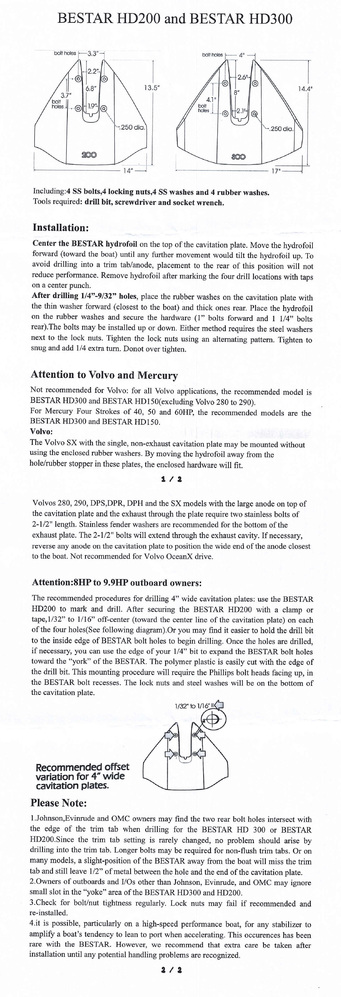

Please see fitting instructions in the pictures to make sure this Hydrofoil will fit your motor
