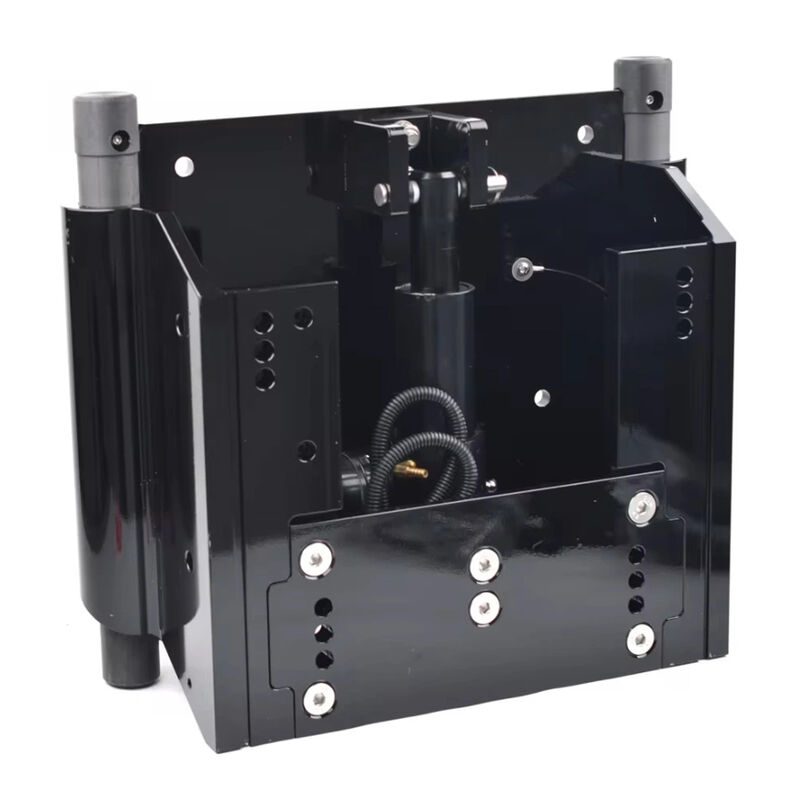

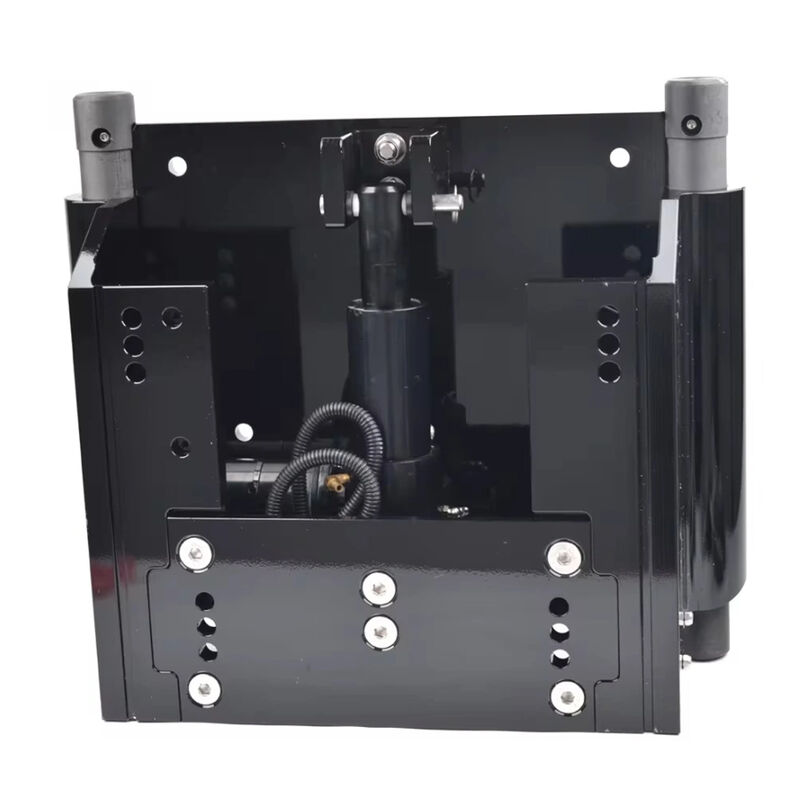

ISLAND OUTBOARD JACKING PLATE

for boats up to 60HP

Take full control of your boat's performance and versatility with the ISLAND Outboard Jacking Plate. Designed specifically for boats with outboard motors up to 60HP, this essential upgrade allows you to effortlessly adjust your motor's vertical height with the simple push of a button. Stop compromising! Fine-tune your trim for optimal speed, better fuel efficiency, and improved handling in varying water conditions. Navigate shallow waters with confidence by easily raising your motor, or dial in the perfect prop depth for maximum bite and hole shot.

Featuring a robust 100W motor capable of generating 15.7KN of jacking force, this plate offers 92mm (3.6 inches) of smooth travel, controlled easily via the included rocker switch. The integrated 6-inch setback enhances performance characteristics by positioning your propeller in cleaner water. Designed for motors weighing up to 108kg, it's a durable and reliable solution for optimising trim, improving shallow water capability, and fine-tuning boat handling. Built tough and easy to install, the ISLAND Jacking Plate comes complete with a relay harness and rocker switch. It's the perfect solution to get the most out of your boat and motor combination.

Key Features:

  • Effortless Height Adjustment: Precise control via the included rocker switch.
  • Optimised Performance: Achieve better speed, handling, and fuel economy.
  • Shallow Water Access: Easily navigate skinny water by raising your outboard.
  • Enhanced Handling: 6-inch setback provides cleaner water to the prop.
  • Robust Design: Suitable for outboards up to 60HP and 108kg (238lbs).
  • Complete Kit: Includes relay harness and switch for installation.

Technical Specifications:

  • Model: ISLAND Outboard Jacking Plate
  • Maximum Horsepower: 60 HP
  • Maximum Load Weight: 108kg (238lbs)
  • Setback: 6 inches
  • Vertical Travel: 3.6 inches (92mm)
  • Jacking Force: 15.7 KN (1.6 TF)
  • Dimensions (Overall): 506mm (W) x 430mm (H) x 179mm (D)
  • Transom Side Mounting Plate: 416mm (W) x 318mm (H)
  • Motor Side Mounting Plate: 506mm (W) x 430mm (H)
  • Motor Power: 100W
  • Net Weight: 21.5 Kg

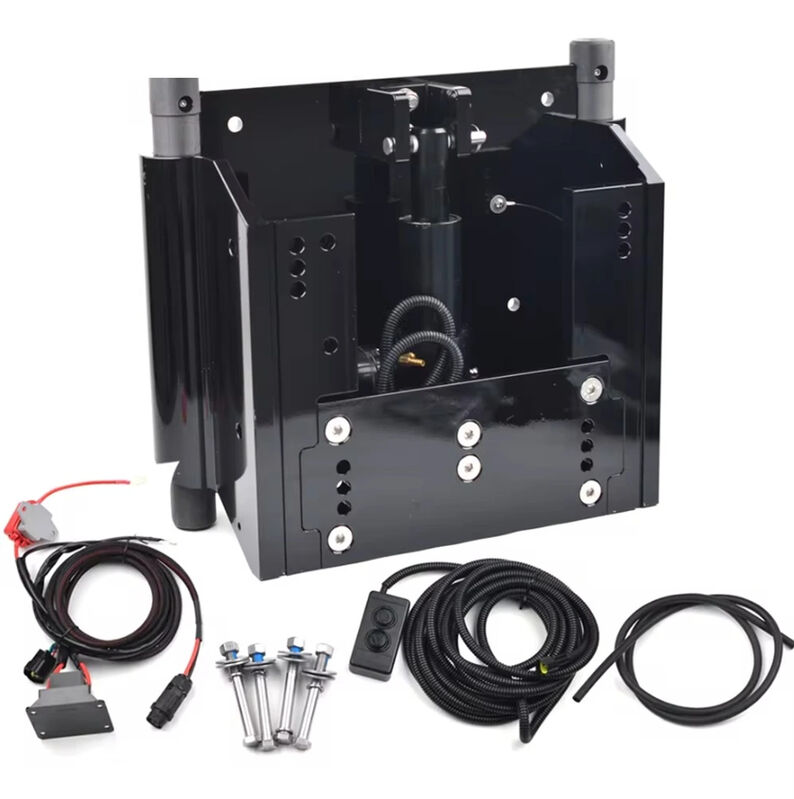

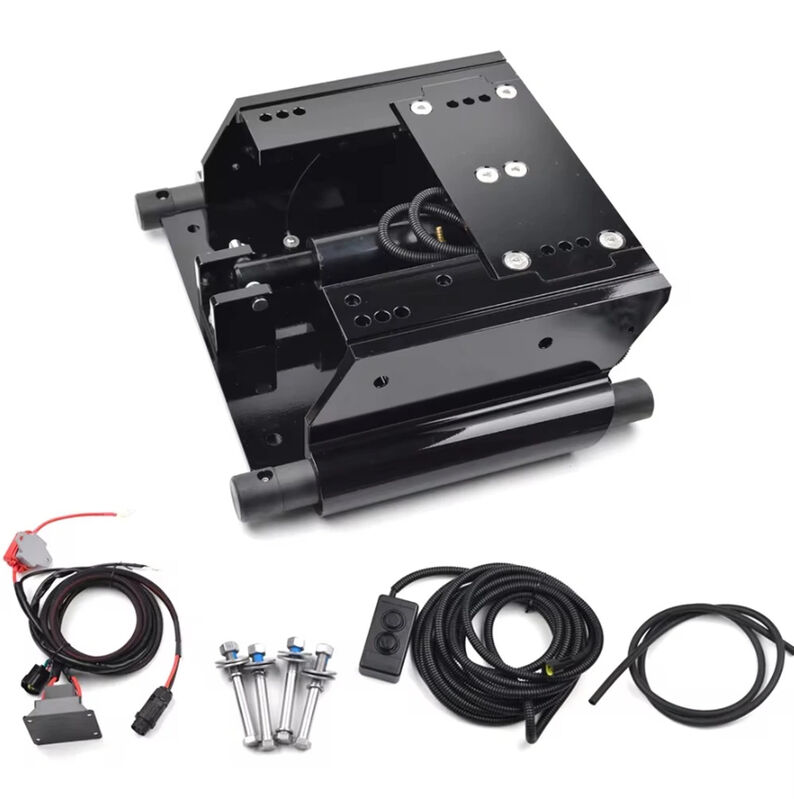

What's Included:

  • ISLAND Outboard Jacking Plate (6-inch Setback)

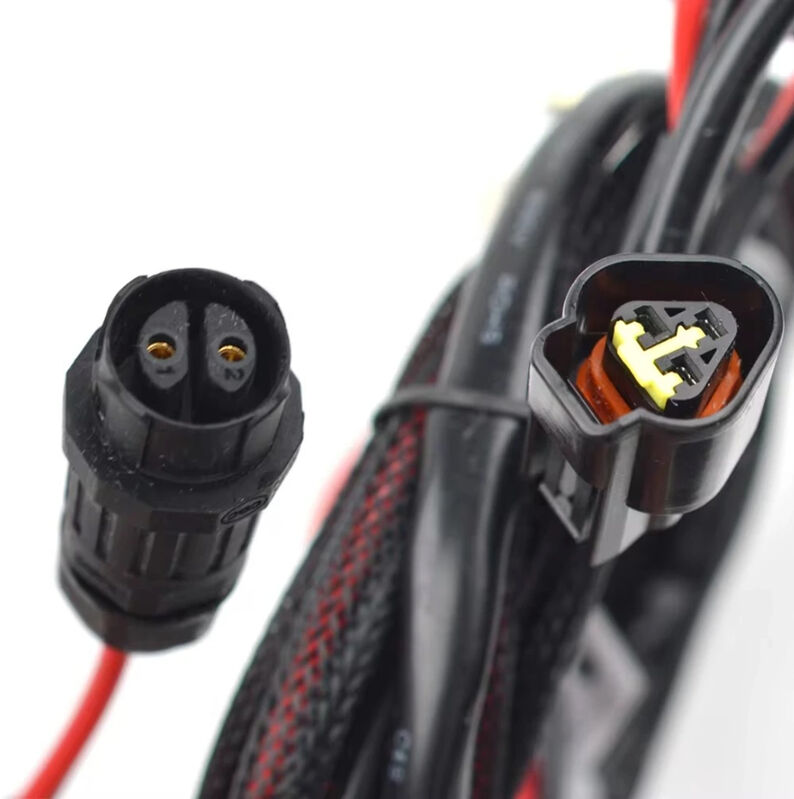

  • Relay Harness
  • Rocker Switch Assembly
Package Includes:
  • ISLAND Outboard Jacking Plate (6-inch Setback)
  • Relay Harness
  • Rocker Switch Assembly





SKU SEJP
Model # SEJP
Brand Island
Artist / Author ISLAND Outboard Jacking Plate for Boats Up to 60HP
Shipping Weight 19.9500kg
Shipping Width 0.450m
Shipping Height 0.300m
Shipping Length 0.550m
Shipping Cubic 0.074250000m3
Unit Of Measure ea
Type ISLAND Outboard Jacking Plate for Boats Up to 60HP
Format ISLAND Outboard Jacking Plate for Boats Up to 60HP
