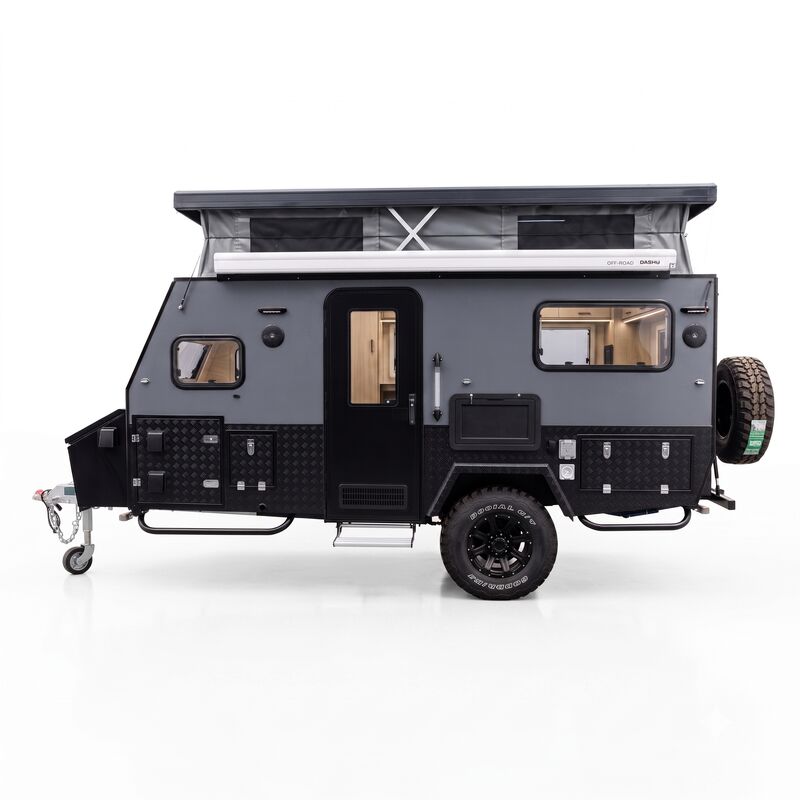

Island Escape 12 – Off-Road Hybrid Pop-Top Caravan

Unmatched Off-Grid Freedom Meets Rugged Australian Durability

The Island Escape 12 is built from the ground up for travellers who want true off-road capability without giving up the creature comforts of a luxury caravan. Combining the compact towing footprint and low wind drag of an agile pop-top camper with the self-contained luxury of a full ensuite caravan, the Island Escape 12 delivers the ultimate off-grid touring setup for couples and adventurous families alike.

Constructed with a fully welded, lightweight aluminium wall frame seated on a heavy-duty hot-dipped galvanised chassis, this hybrid is engineered to take on tough Australian tracks. Backed by top-tier off-grid componentry—including a complete Renogy smart lithium power station and genuine Truma climate & hot water systems—the Island Escape 12 is fully equipped, fully self-sufficient, and ready to explore wherever the map takes you.

Key Highlights

• 300Ah Renogy Smart Lithium Setup: Fitted with 300Ah LiFePO4 lithium batteries, 300W roof-mounted solar, a 50A DC-DC MPPT smart charger, a 2000W pure sine wave inverter, and the intuitive Renogy One Core 4" touchscreen monitoring panel.

• Genuine Truma Climate & Hot Water: Enjoy year-round comfort with a Truma reverse-cycle air conditioning unit and on-demand hot water from a Truma 14L gas/electric service.

• Heavy-Duty Off-Road Foundation: Features a hot-dipped galvanised drawbar (150 X 50 X 4) and chassis (150 X 50 X 3), independent trailing arm suspension with quad auto-kickback shock absorbers, and GoodRide mud-terrain tyres on 16" alloy wheels with dual rear spares.

• Full Outdoor Chef’s Kitchen: Heavy-duty slide-out 304-grade stainless steel kitchen featuring an ADR-compliant 4-burner gas stove with flame-out safety, sink with folding hot/cold tap, dedicated pantry storage, and a large slide-out fridge tray.

• Versatile 4-Berth Layout: Features a plush custom 170mm Queen foldable innerspring mattress, interior bunk bedding, and a private internal ensuite with shower and Thetford toilet.

Detailed Specifications

Chassis, Suspension & Body Construction

• Chassis & Drawbar: Q345 Heavy-duty hot-dipped galvanised inside and outside (150 X 50 X 4 drawbar / 150 X 50 X 3mm main chassis).

• Body Construction: Fully welded aluminium wall framing for maximum weight savings and strength, insulated aluminium composite body panels, and heavy-duty black checker plate side and rock protection.

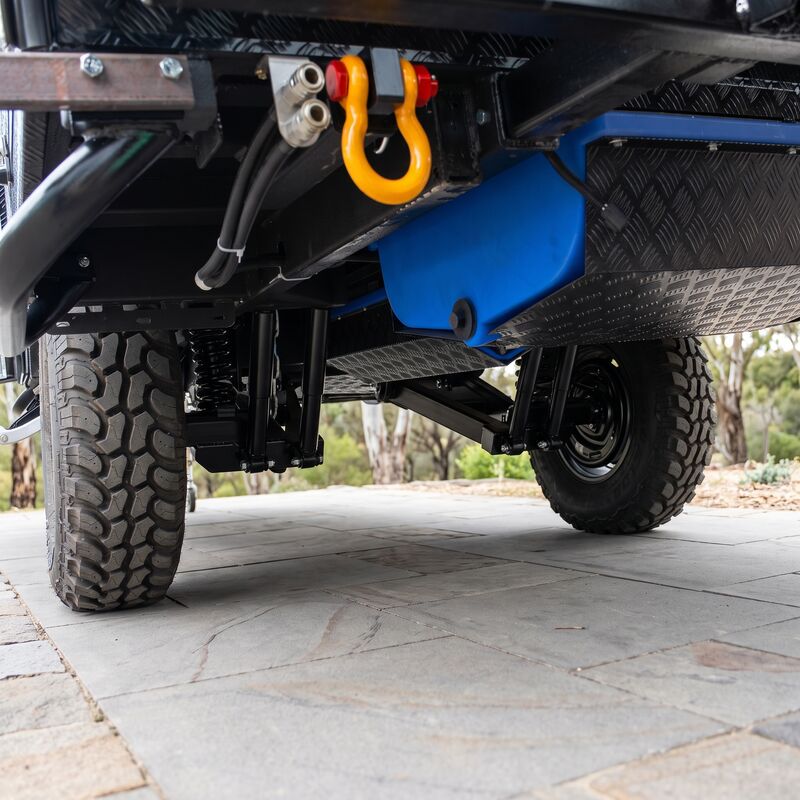

• Suspension: Heavy-duty independent trailing arm suspension with 4x heavy-duty coil springs and auto-kickback shock absorbers.

• Braking System: 12" Heavy-duty electric brakes with integrated mechanical handbrake.

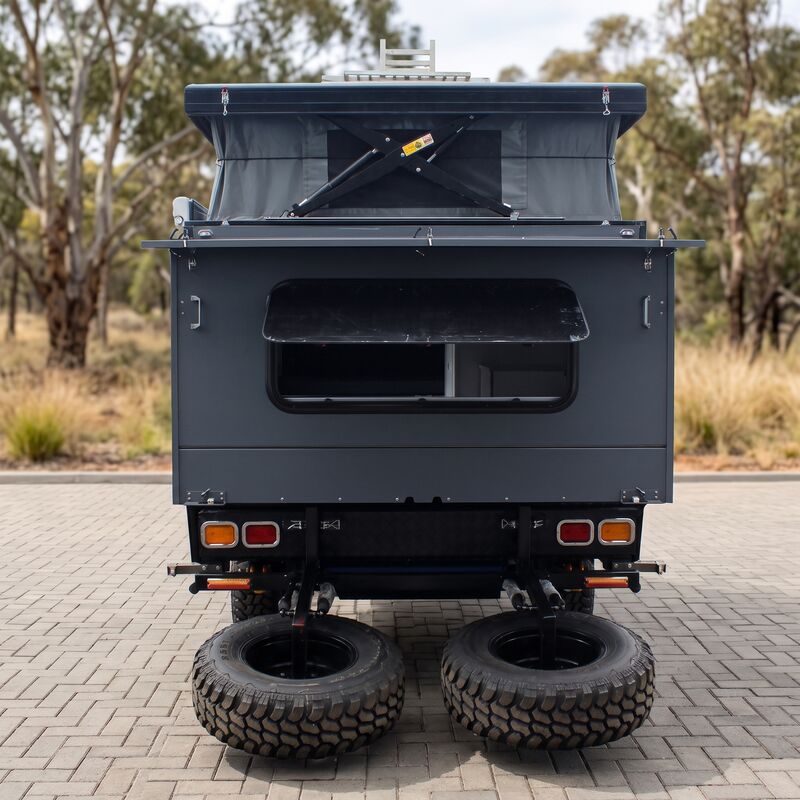

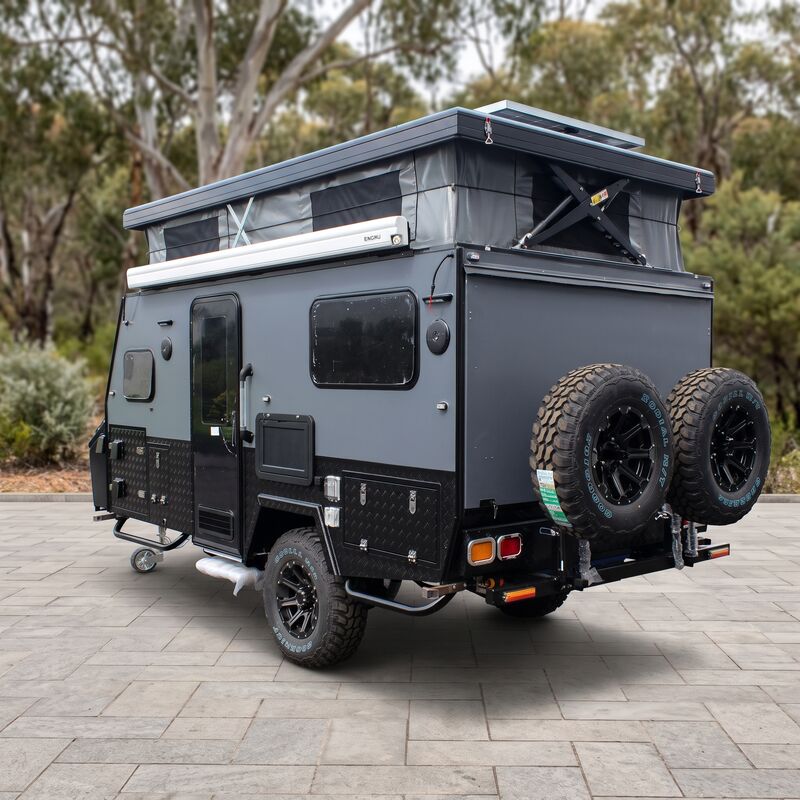

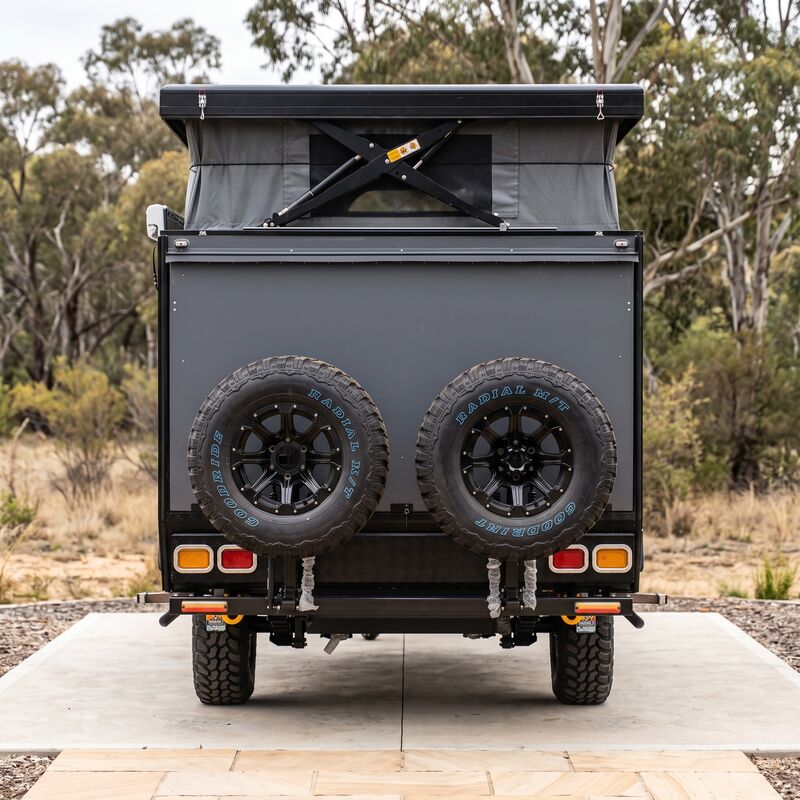

• Wheels & Tyres:  4 X 16" Alloy wheels (rated to 1,550 kg each) wrapped in 265/75 16 GoodRide Mud-Terrain tyres + Fold-down rear dual spare wheel carrier with 2x full-sized spare tyres.

• Stabilisers & Jockey Wheel: 4 x Heavy-duty lockable drop-down corner stabilisers + 8" heavy-duty swing-up jockey wheel.

Off-Grid Power & Electrical Management

• Battery Bank: 300Ah Lithium Battery System (3 X 100Ah LiFePO4).

• Solar Capacity: 300W roof-mounted slimline solar panel array (3 X 100W).

• Charging & Inverter: Renogy 50A DC-DC on-board battery charger with built-in MPPT regulator, 240V intelligent battery charger, and a 2000W Pure Sine Wave Inverter.

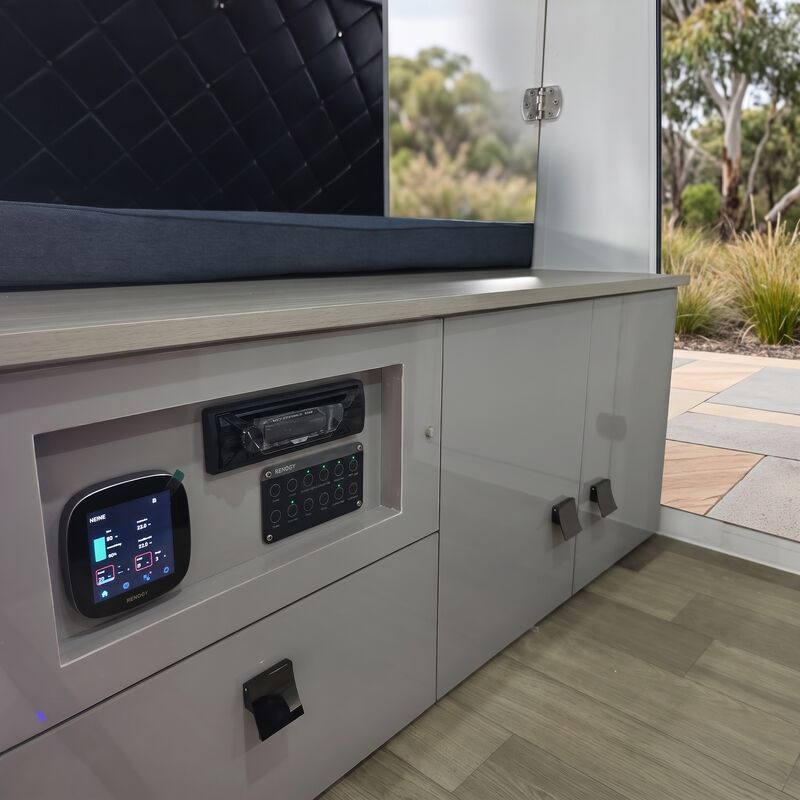

• Control Centre: Renogy One Core 4" smart touchscreen display for real-time power and system monitoring.

• Connectivity & Outlets: External 240V mains inlet and outlet, multiple 12V cigarette sockets, USB charging ports, and internal 240V power points.

• Lighting: High-output LED interior ceiling lights, reading lights with integrated USB ports, external entry handle light, and external LED awning floodlights.

Water, Gas & Plumbing

• Fresh Water: 120L fresh water capacity (80L + 40L food-grade poly tanks shielded by alloy checker plate bash guards).

• Grey Water: 80L Underfloor Grey Water Tank.

• Hot Water: Truma 14L Gas / 240V Electric Hot Water System.

• Pump: Thetford 12V silent automatic pressure pump.

• Gas System: Certified copper gas line plumbing with dual 9.5kg gas bottle holders and quick-connect external bayonet fittings.

Interior Comfort & Ensuite

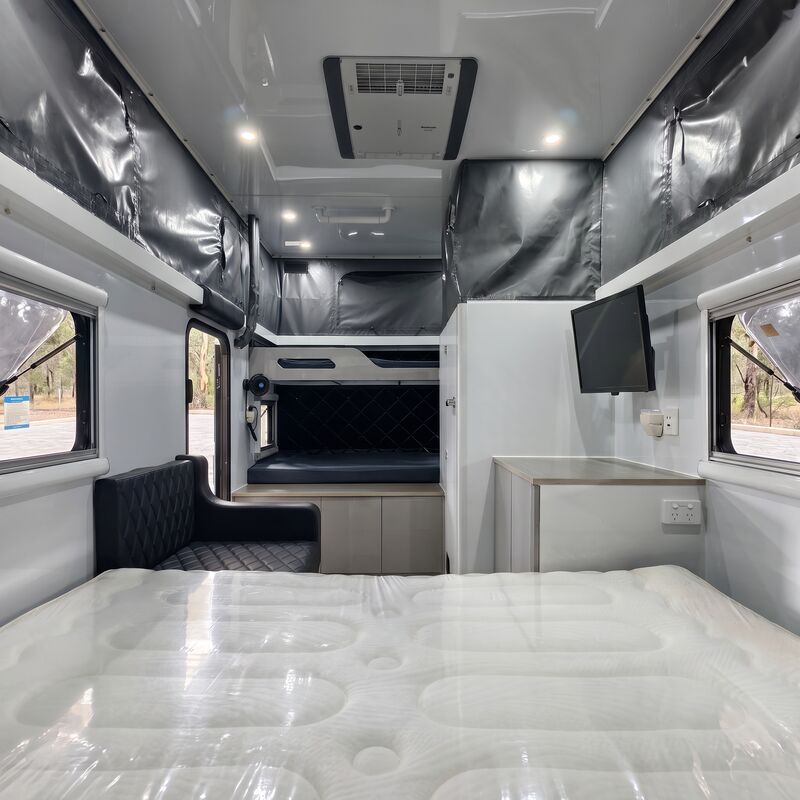

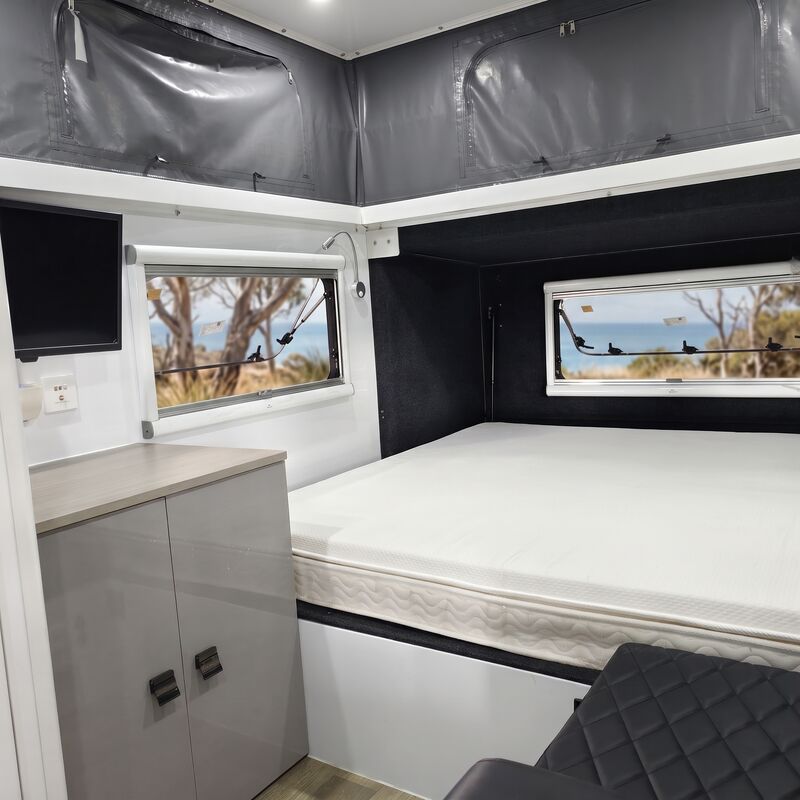

• Master Bed: Custom 170mm Queen-size foldable innerspring mattress with under-bed storage.

• Bunk Setup: Interior bunk setup with 80mm high-density foam mattresses.

• Ensuite Bathroom: Internal wet bath ensuite with shower, basin, and a pull-out Thetford cassette toilet.

• Outdoor Shower: External hot/cold utility shower with van-mounted quick-deploy privacy shower tent.

• Air Conditioning: Truma climate control system.

• Windows & Security: Tinted double-glazed push-out acrylic windows with integrated flyscreens and pleated blackout blinds + security main entry door with flyscreen mesh.

• Entertainment: Marine-grade Bluetooth stereo with 4 internal/external speakers and wall-mounted TV bracket with antenna points.

External Cooking & Storage

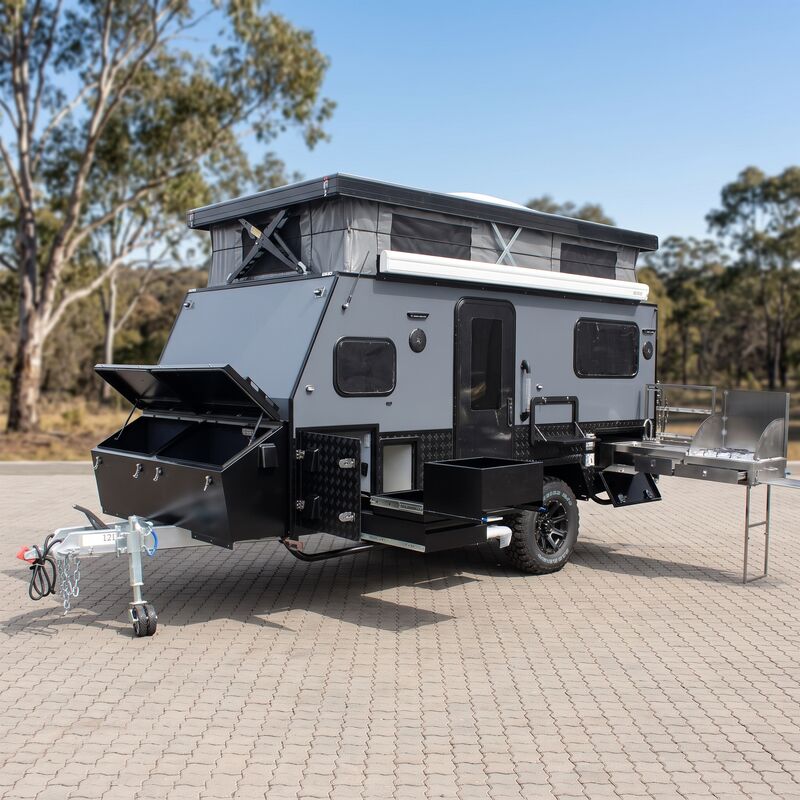

• Slide-Out Kitchen: 304 Marine-grade stainless steel kitchen slide with an ADR-approved 4-burner gas cooktop, folding wind deflectors, stainless sink with mixer tap, and utensil slide drawers.

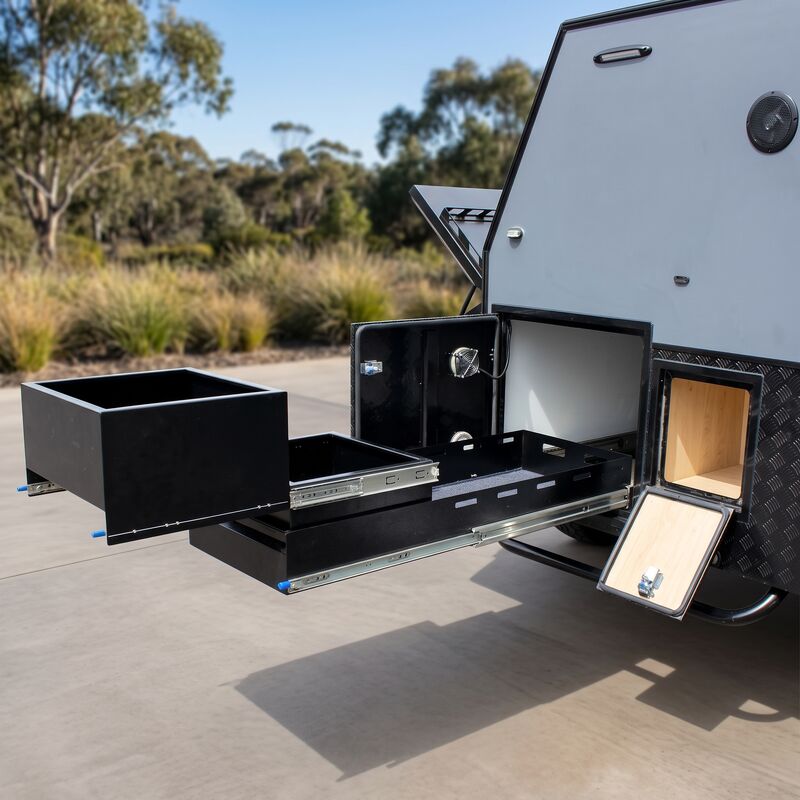

• Fridge Slide: Large lockable front tunnel boot/toolbox with heavy-duty slide-out tray for portable fridge/freezers.

• Shelter: Manual and electric wind-out side awning.

• Protection: Front mudflaps and underbody rock guard coating.

Technical Dimensions & Weights

Metric	Specification
Overall Length (Hitch to Spares)	5,430 mm
Overall Width	2,100 mm
Travel Height (Roof Closed)	2,340 mm
Tare Weight	1,900 kg
GTM / ATM Rating	3,000 kg
Ball Weight	120 kg
Sleeping Capacity	Up to 4 Persons (Queen Bed + Bunks)
Colour Options	Stealth Grey / Classic White
