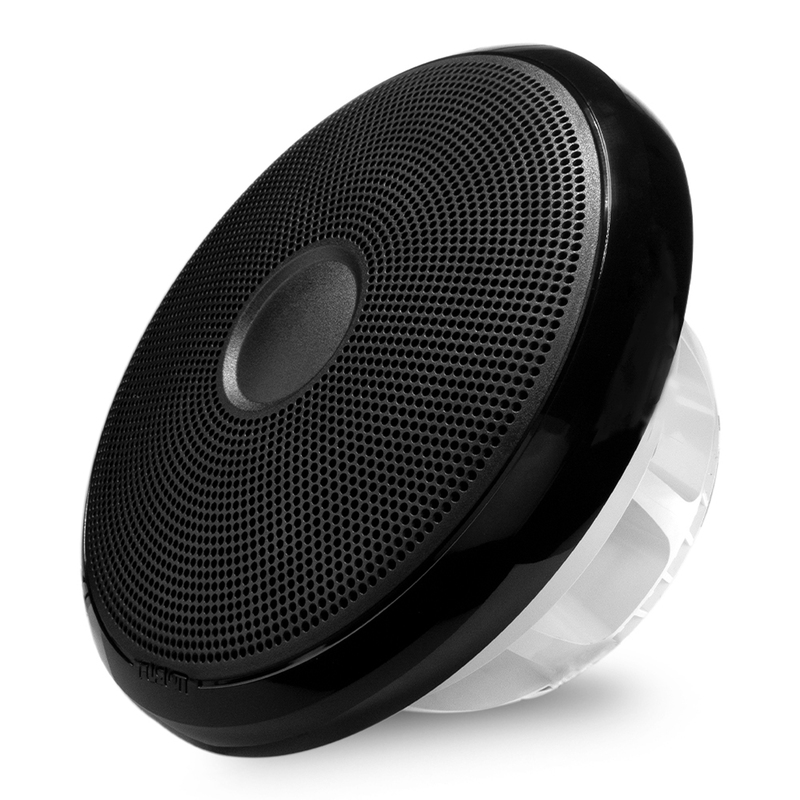

Fusion XS Classic Series Marine Subwoofer

10" Inch 600-Watt


Continuing to set the benchmark for marine audio entertainment, Fusion’s new XS Series subwoofer features their trademark quality audio reproduction and enhanced marine aesthetics at a mid-range price point. Optimized for use in the marine environment, and built for performance, the XS subwoofer is designed to consistently produce quality low frequency audio at any volume level, season after season.

With an IP65 weatherproof rating, True-Marine accreditation and an industry-leading 3-year warranty, you can enjoy peace of mind that your XS Series subwoofer is built to last on your boat.


Built on the True-Marine design philosophy from Fusion, the XS Series subwoofers have achieved an IP65 rating for protection against dust and water ingress and have been tested to a high level of protection against salt fog, temperature, vibration and UV.


Tested to international standards for pressure and water ingress, the XS Series subwoofers are designed and built to the highest industry standards for quality and robustness.


Built for system versatility and ease of integration, you can connect your XS Series subwoofer directly to a 2.1 audio zone compatible system such as the Apollo™ Series without the need for an external amplifier – reducing system cost and simplifying installation.


By using a translucent cone, consistent multi-colour illumination are incorporated into the system. It also produces defined, high-resolution low frequencies from the excellent self-damping and bass reproduction.


With an increase in real power and efficiency, the large-diameter voice coil delivers a truly high-quality sound experience.


The basket is constructed using high-quality engineered plastics to deliver enhanced durability when exposed to the marine environment.


The XS Series classic-style subwoofer is available in a 10” size with interchangeable classic white/classic black grilles for a timeless, elegantly styled finish to blend in with the aesthetics of your boat.


Physical dimensions (Diameter x Depth): Classic: 10.79" x 5.59" (274 x 142 mm)
Water and dust rating: IP65
Speaker size: 10"
Peak power (Watts): 600 W
RMS power (Watts): 120 W
Sensitivity (1 W / 1 m): 87 dB
Magnetic structure: 41 oz
Frequency response: 30 Hz - 2 kHz
Nominal impedance: 4 ohms
Recommended amplifier power (RMS): 40 - 300 W
Operating temperature range: 32° to 122° F (0° to 50° C)
Voice coil diameter: 1.5"
Operating temperature range: Polypropylene cone with rubber surround
Compass-safe distance: 146" (370 cm)
Warranty: 3 years

 Mounting dimensions:

Mounting diameter clearance: 8.78" (223 mm)
Mounting depth clearance: 4.45" (113 mm)

Optimum enclosure recommendations:

Sealed enclosure volume: 1.4 cubic ft (40 L)
• Fully filled with absorption material

Package Includes:

10" 600-Watt Classic Marine Subwoofer

• XS-S10CWB subwoofer
• 6 Phillips stainless steel mounting screws (4.8 mm x 50 mm / 10 gauge x 2”)
• Speaker grilles (1 classic white/1 classic black)
• Documentation

SKU 010-02198-00
Model # 010-02198-00
Barcode # 753759221508
Brand Fusion
Artist / Author FUSION XS Classic Series Marine Subwoofer 10" Inch 600-Watt Garmin 010-02198-00
Shipping Weight 1.8000kg
Shipping Width 0.180m
Shipping Height 0.180m
Shipping Length 0.275m
Shipping Cubic 0.008910000m3
Type FUSION XS Classic Series Marine Subwoofer 10" Inch 600-Watt Garmin 010-02198-00
Format FUSION XS Classic Series Marine Subwoofer 10" Inch 600-Watt Garmin 010-02198-00
