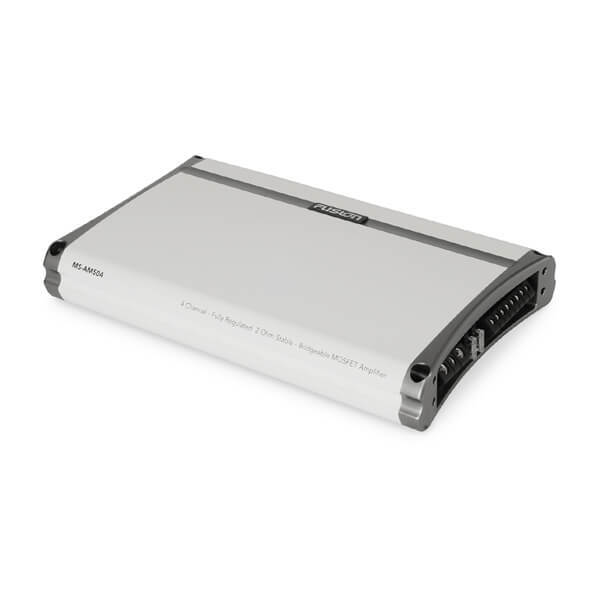

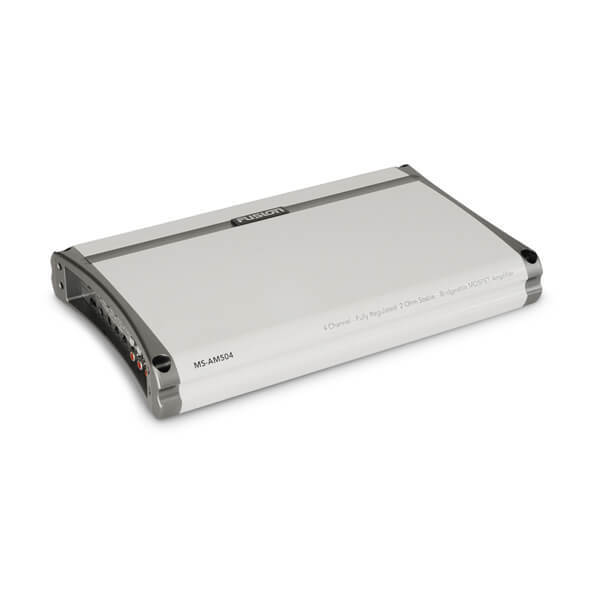

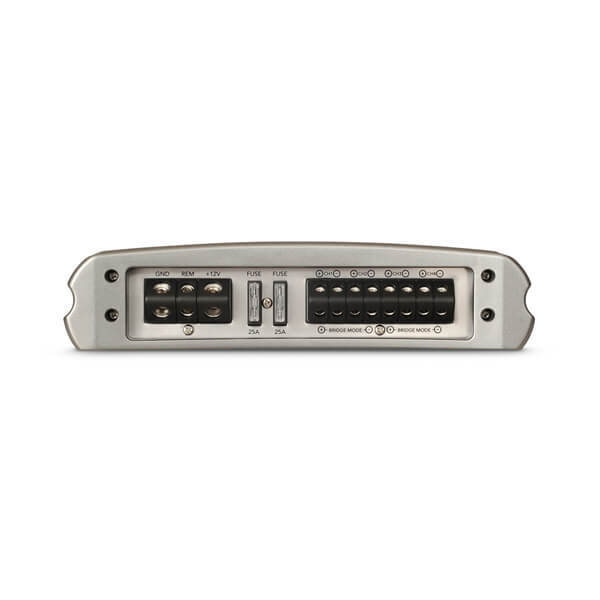

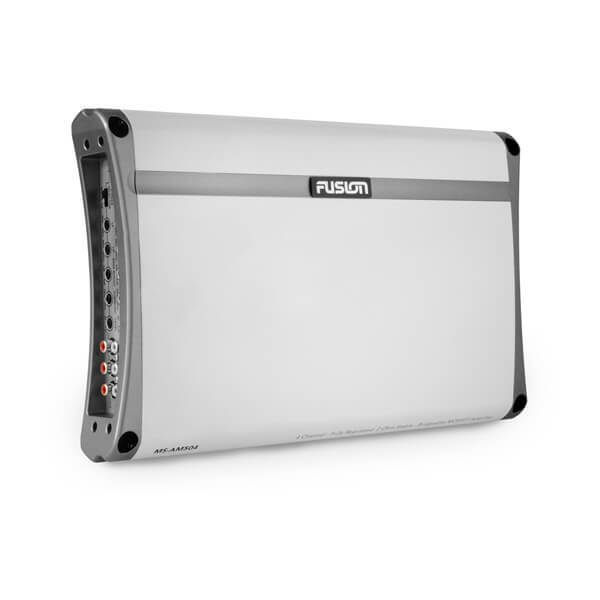

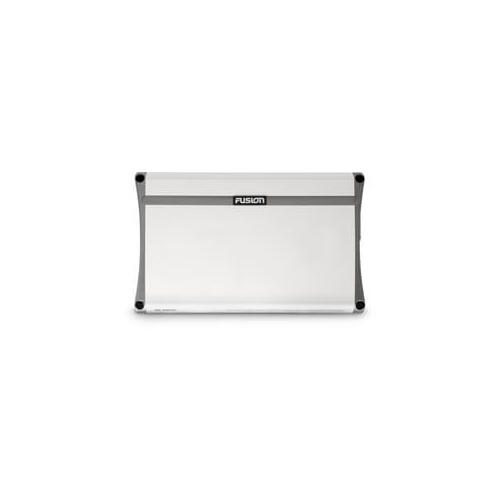

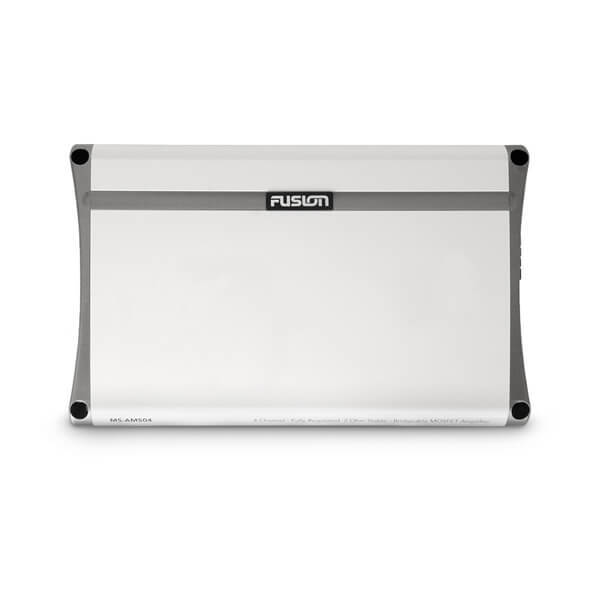

FUSION MS-AM504 Series 500-Watt 4 Channel Marine Boat Amplifier Garmin Part#: 010-01500-00
or 4 payments of $103.24 with Info
Fusion AM Series Marine Amplifiers 500-Watt
4 Channel Marine Amplifier
CLASS-AB AMPLIFIER TECHNOLOGY
The Class-AB design provides high power output with reduced distortion to the connected speakers/subwoofers for an enhanced level of audio performance.
ENHANCED SYSTEM PERFORMANCE

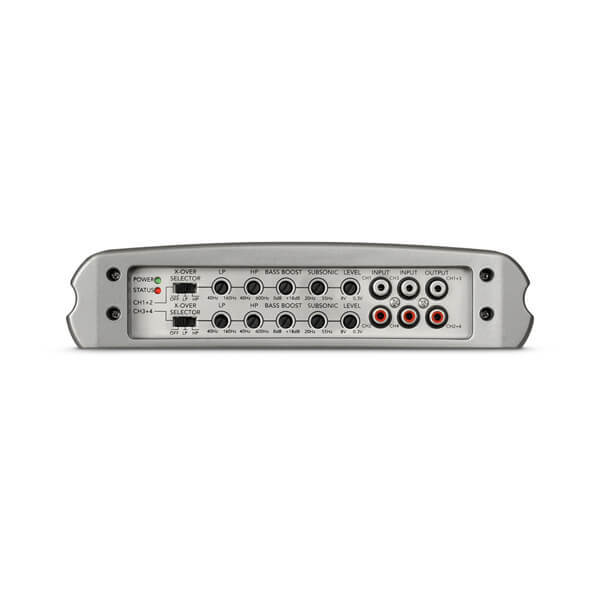

The AM Series amplifiers feature built-in variable bass boost, a subsonic filter and variable low/high pass crossover filters for enhanced performance and system protection.
MARINE-READY DESIGN WITH CONFORMAL COATED PCBS
Helping to extend the life of your amplifiers, the AM Series amplifiers are designed with conformal coated PCBs to provide extra protection from the marine elements.
HEAT SINK TECHNOLOGY
The incorporated heat sink is designed to dissipate heat efficiently, providing more thermal stability and enhanced component reliability.
400-WATT 2-CHANNEL AMPLIFIER
The AM Series 400-watt 2-channel amplifier can power up to a maximum of two pairs of speakers or one subwoofer.
500-WATT 4-CHANNEL AMPLIFIER
The AM Series 500-watt 4-channel amplifier can power up to a maximum of four pairs of speakers or two pairs of speakers and one
• Physical dimensions (Length x Width x Height): 4 Channel: 14.41? x 9.02? x 2.09? (366 x 229 x 53 mm)
• Amplifier class: Class-AB
• Peak power (Watts): 4 Channel: 500 W
• Total rated power output - 4 Ohm (Watts): 4 Channel: 65 W RMS x 4 @ 14.4 V input - 4 Ohm < 1% THD
• Total rated power output - 2 Ohm (Watts): 4 Channel: 100 W RMS x 4 @ 14.4 V input - 2 Ohm < 1% THD
• Total rated power output - 4 Ohm Bridged (Watts): 4 Channel: 200 W RMS x 2 @ 14.4 V input - 4 Ohm Bridged < 1% THD
• Frequency response: 5 Hz - 38 kHz (-3dB, dB @ 4 Ohm rated power)
• Input sensitivity: 0.3 V - 8 V RMS, user adjustable
• Input impedance: 5k Ohm nominal
• High-pass/low-pass full range filter: Yes (user selectable)
• HP variable crossover frequency: 40 Hz - 600 Hz
• LP variable crossover frequency: 40 Hz - 160 Hz
• Warranty: 1 year
• One amplifier
