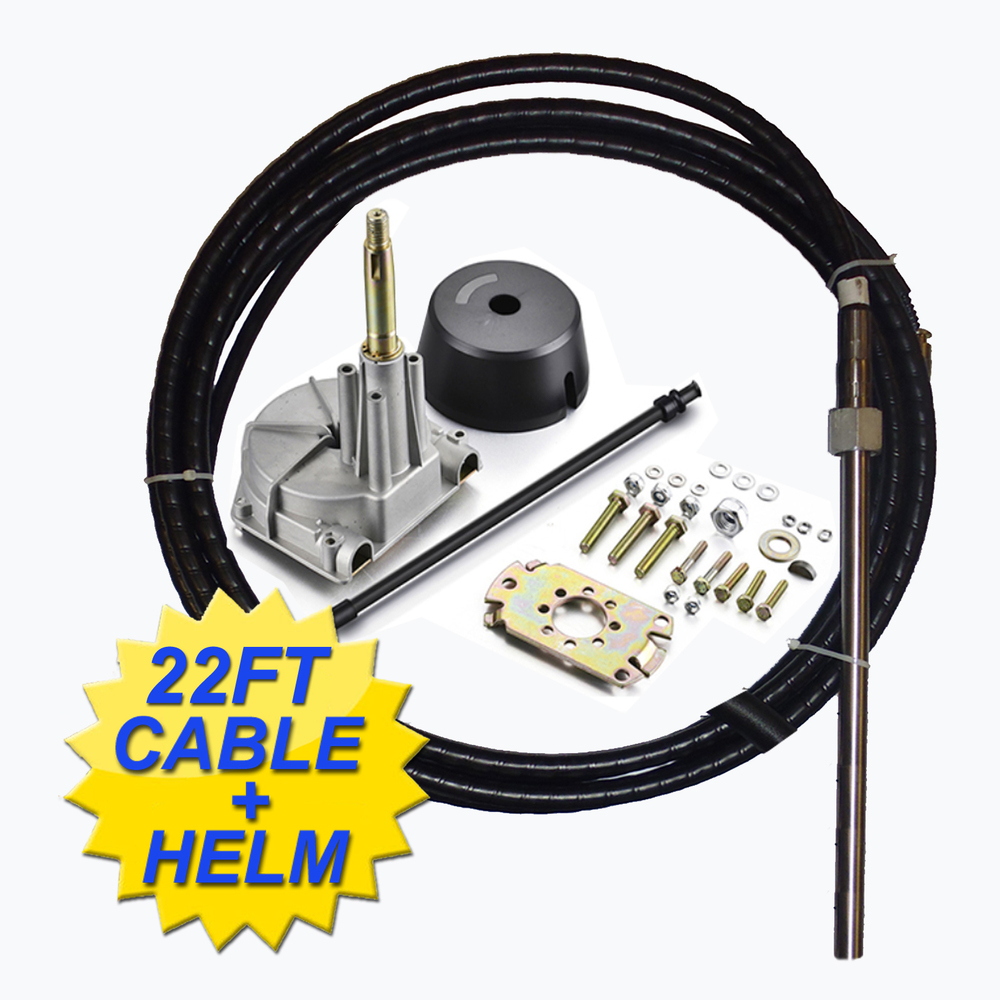

Boat Steering Kit 22FT (6.7 metre)
Cable + Helm + SPORTS Steering Wheel
The most popular boat steering system ever made. Quick response system rated for all outboards to 115hp. Boats travelling over 40 knots, or when engine flutter is apparent, should use twin cables.

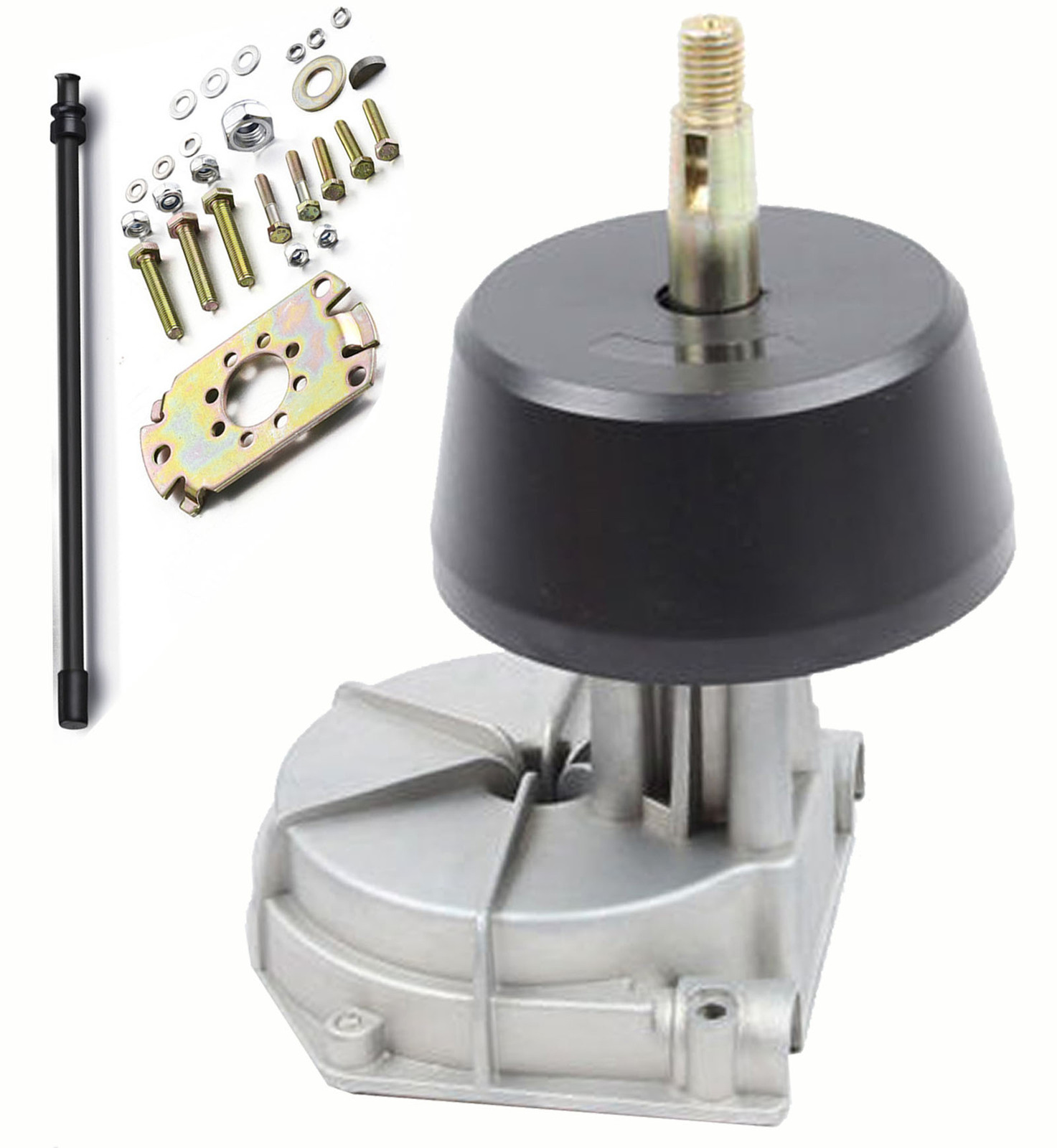

Simple and reliable connection at the helm makes installation a snap.

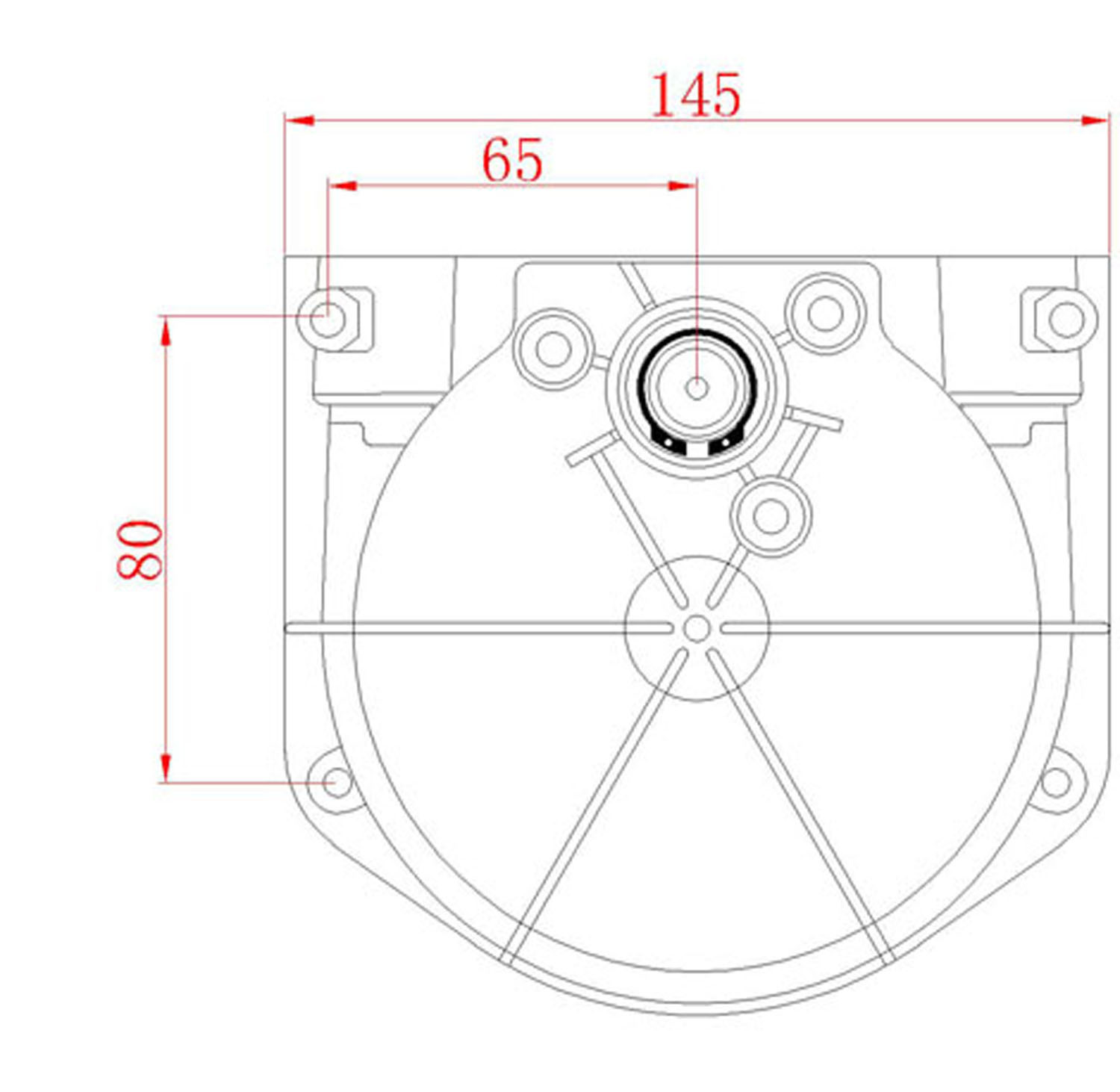

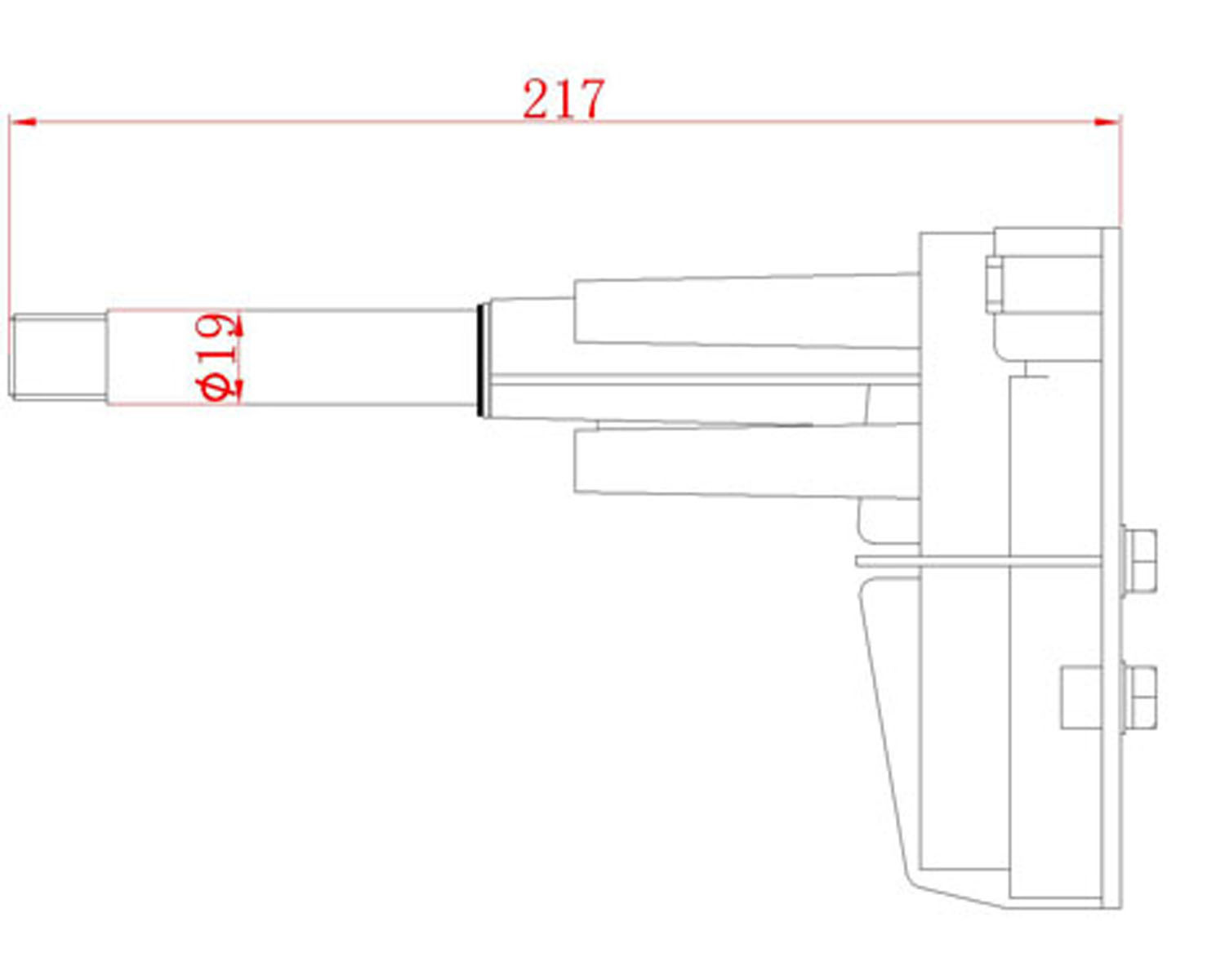

• Compact rotary helm occupies minimal space behind dash
• Cable will fit through minimum channel of 23mm
• Standard ¾" tapered steering wheel shaft
• Stainless steel cable output end minimises corrosion
• Meets ABYC, NMMA and BIA requirements

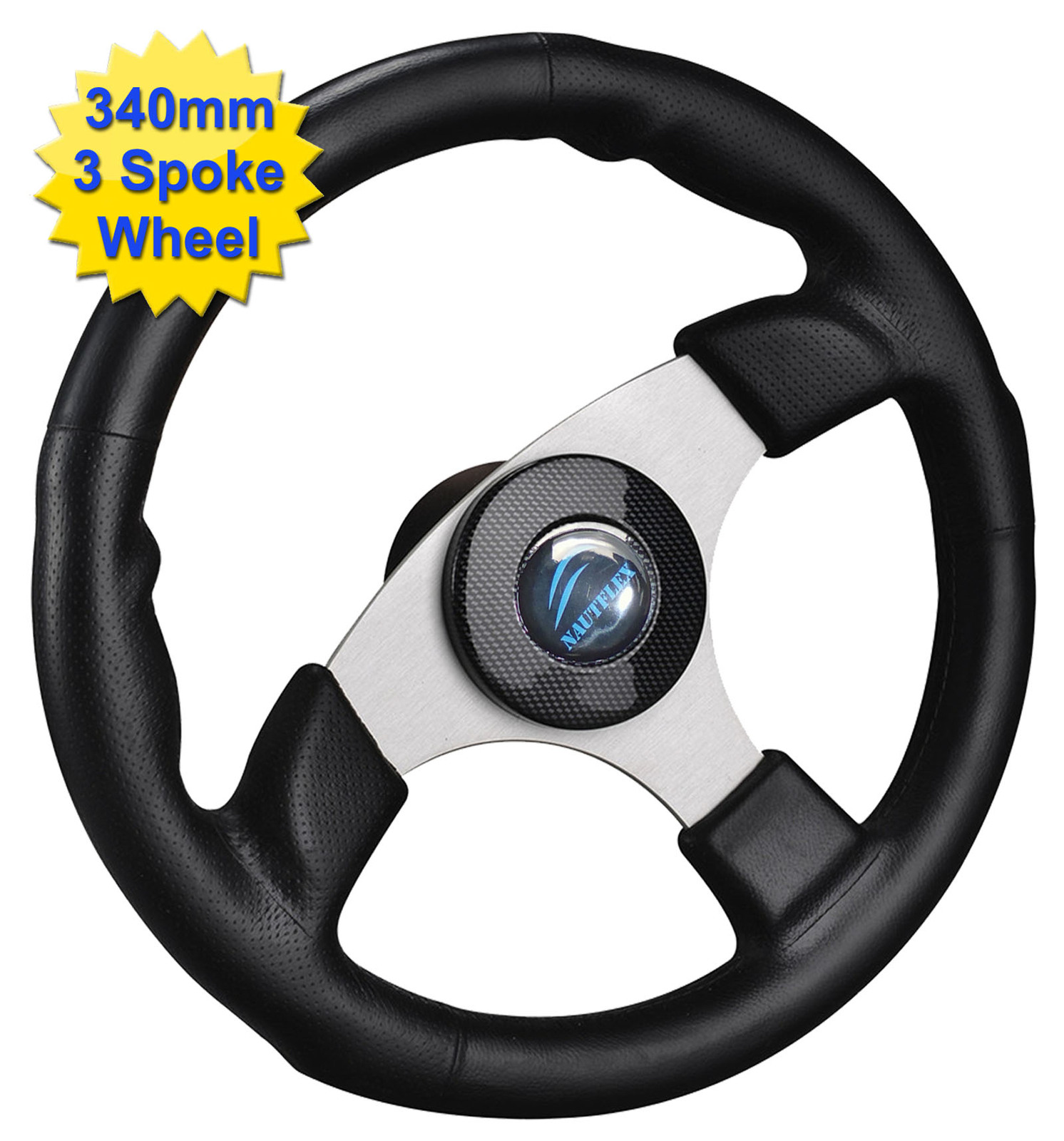

Aluminum 3 Spoke SPORTS Boat Steering Wheel
Shaft 3/4'' PU Foam
  • Non-directional 3 spoke steering wheel
  • Aluminum alloy spokes, black grip with PU foam cover
  • Included black center cap
  • Universal fits standard 3/4" ( 19 mm ) tapered shaft
  • Commonly used on most marine boats, vessels, yacht, pontoon boat and so on
  • Material: Aluminum alloy coated PU foam cover
  • Colour: Black
  • Steering Wheel Outer Diameter: Approx. 340 mm/13.4 inch
  • Assembly Hub Height: Approx. 50 mm/2 inch
  • Hub Diameter: Approx. 85 mm/3.35 inch
  • Center Hole Inner Diameter: Approx. 19 mm/0.75 inch
  • Center Hole Slot Inner Width: Approx. 5 mm/0.2 inch

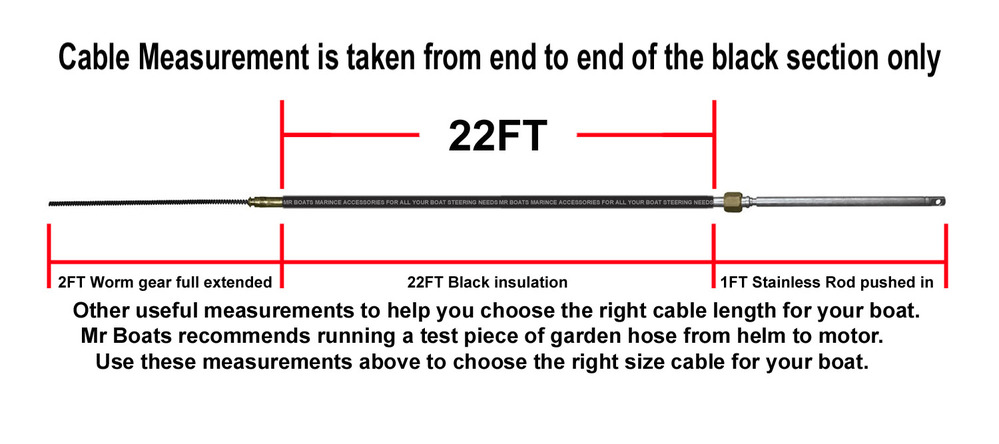

Cable Measuring:

To measure the correct length cable for your boat, please use the measuring template attached in the photos. Do not use your existing cable length as all manufactures use different measuring points & technics. If for some reason you have made a mistake in measuring your cable and need to swap it over. We are happy to do this as long as the cable comes back to us in the same condition (No marks no grease in original packaging) as we sent it to you. Once getting the cable back we'll inspect it and resend the cable length you require. Customer has to pay for all frieght costs, plus any different in cable costs.

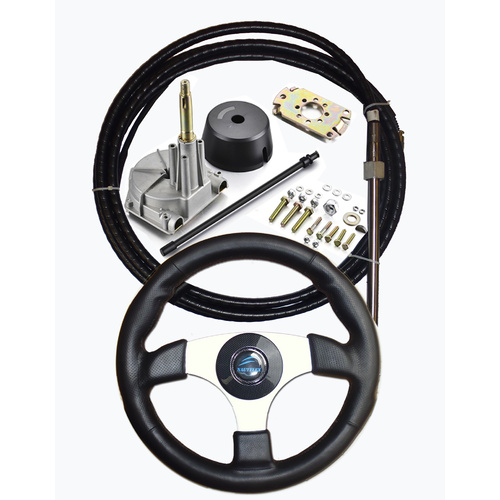

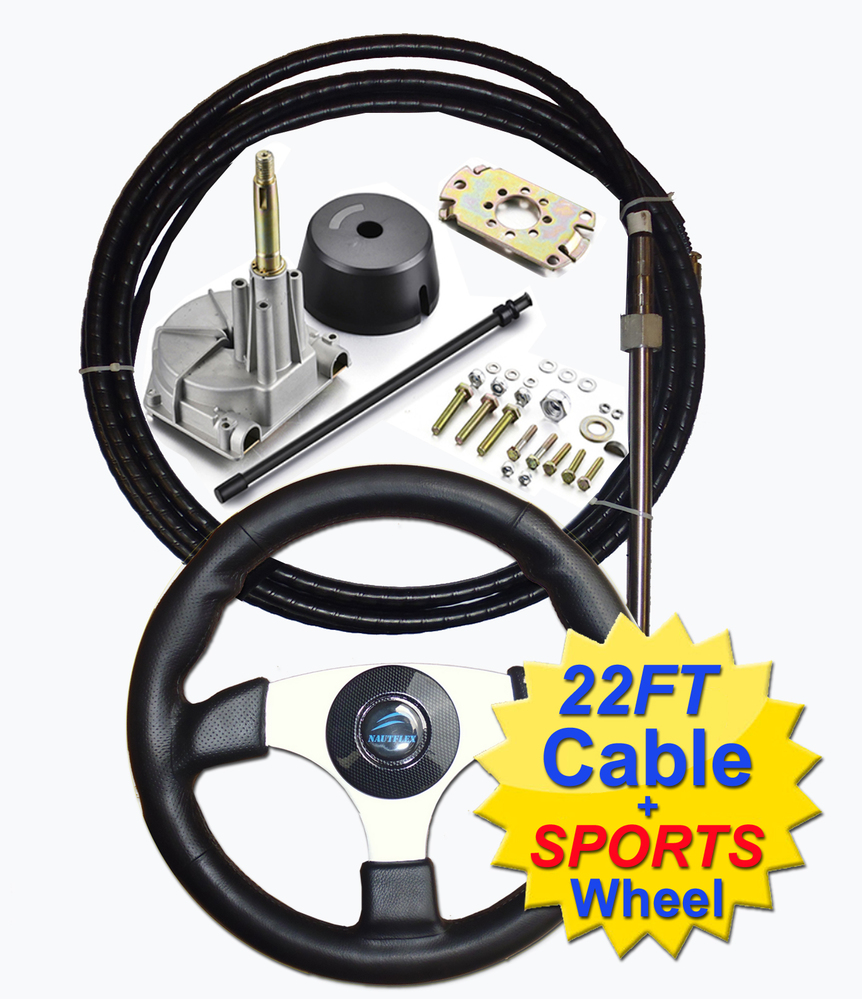

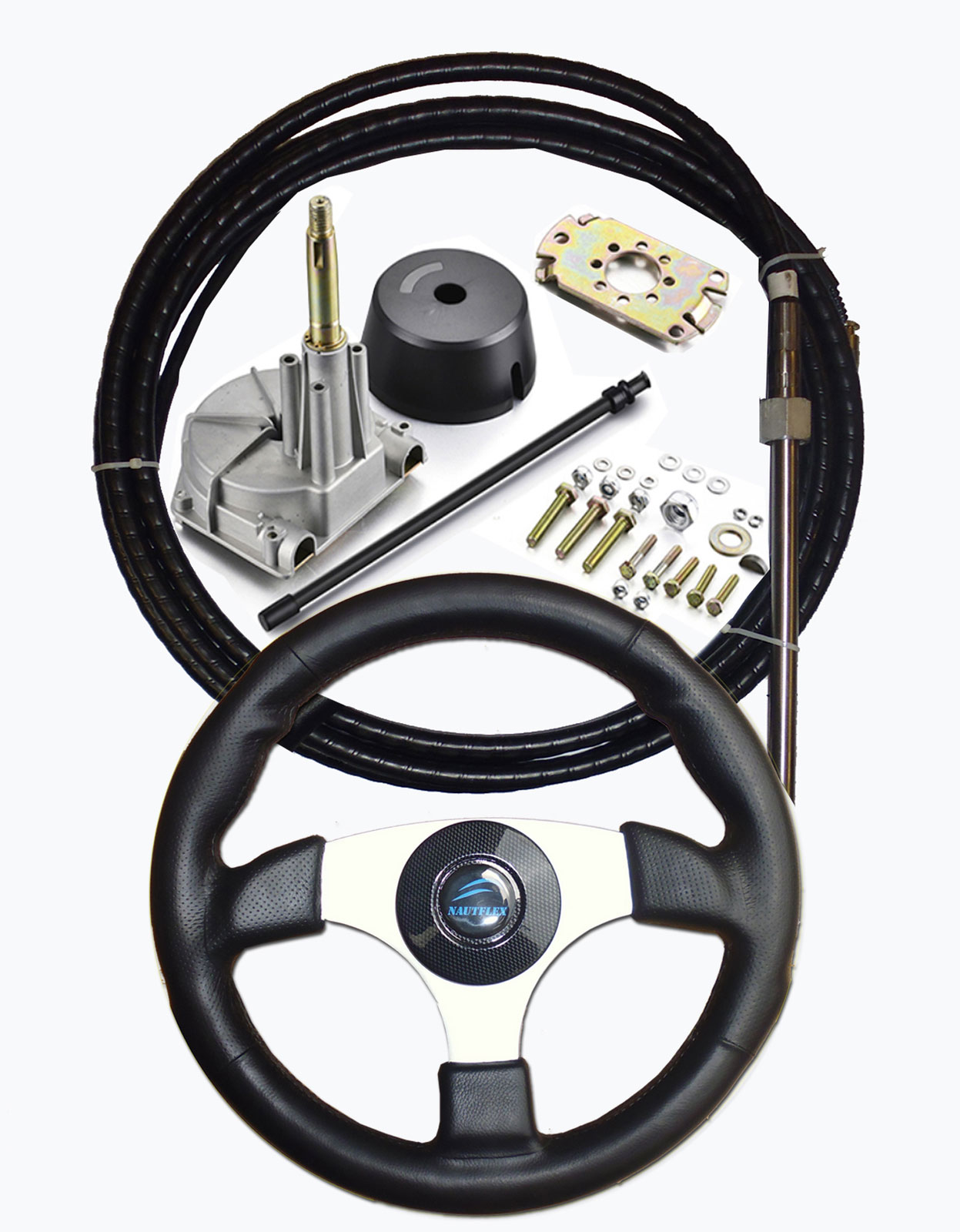

Package Includes:
  • 22ft Steering Cable
  • Helm
  • Bezel
  • SPORTS Steering Wheel
  • Assembly bolts



SKU YK7-160-22-H-W-S
Model # YK7-160-22-H-W-S
Brand Island
Artist / Author BOAT STEERING KIT 22FT / 6.7m Cable Helm SPORTS Wheel Multiflex Teleflex Morse
Shipping Weight 8.3000kg
Shipping Width 0.600m
Shipping Height 0.190m
Shipping Length 0.500m
Shipping Cubic 0.057000000m3
Type BOAT STEERING KIT 22FT / 6.7m Cable Helm SPORTS Wheel Multiflex Teleflex Morse
Format BOAT STEERING KIT 22FT / 6.7m Cable Helm SPORTS Wheel Multiflex Teleflex Morse
