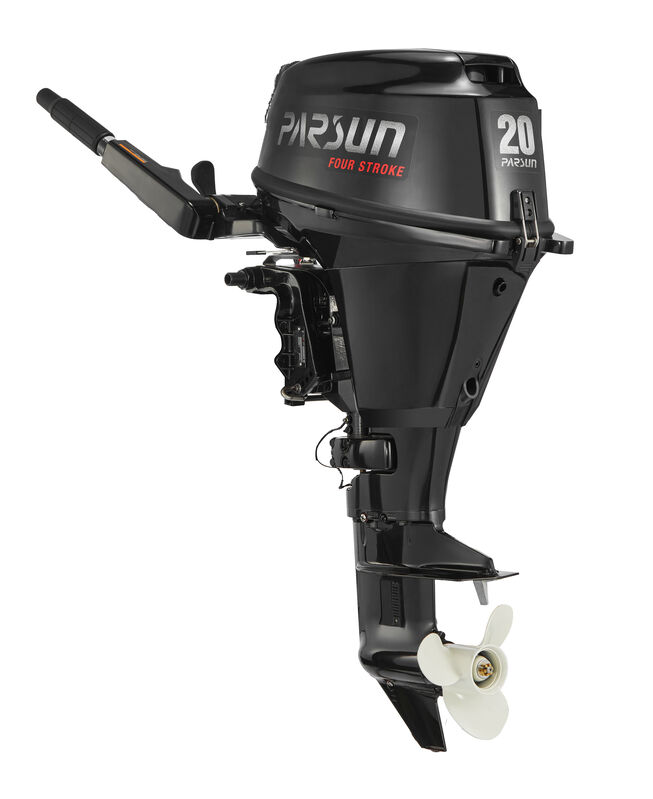

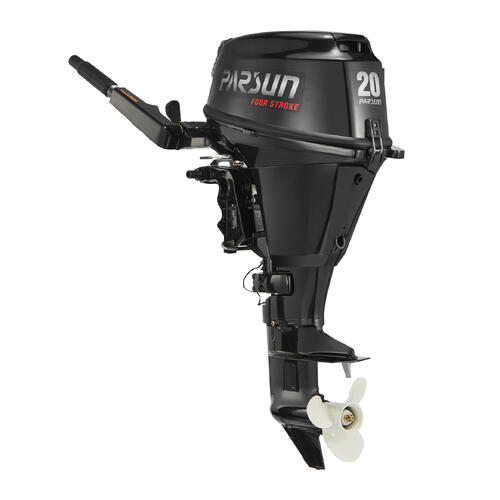

PARSUN 20HP EFI 4-STROKE OUTBOARD MOTOR

SHORT SHAFT, ELECTRIC START & POWER TILT TRIM

PARSUN’S 20 HP EFI (Electronic Fuel Injection) 4-Stroke outboard motor delivers unmatched value, reliability, and performance in the portable to mid-size horsepower class. Now upgraded with integrated Hydraulic Power Tilt & Trim, this engine provides effortless, push-button transom adjustment and shallow water running at the touch of a button—eliminating manual lifting completely.

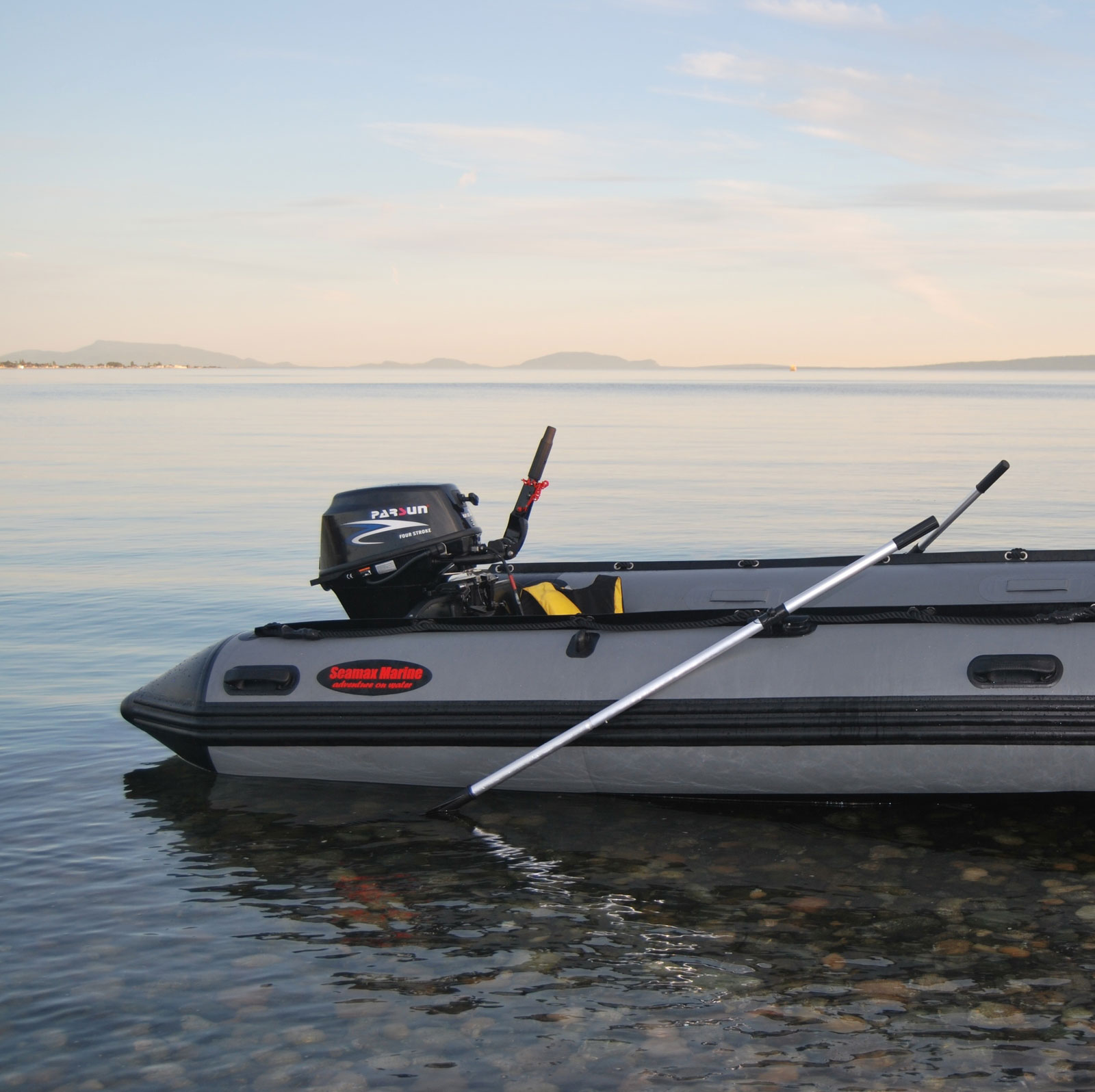

Engineered with an outstanding power-to-weight ratio, this 20HP EFI model combines turnkey electric starting with advanced digital fuel injection for instant starts, smooth idle, crisp throttle response, and maximum fuel economy. Whether you are powering an aluminium tinny, inflatable tender, RIB, or small fishing runabout, this motor delivers quiet, clean, and dependable power backed by a comprehensive warranty.

Model Configuration:
  • Model Code: F20ABWS-T-EFI (Power Tilt & Trim Series)
  • Horsepower: 20 HP 4-Stroke (362cc Twin Cylinder)
  • Starting: Push-Button Electric Start (with manual recoil backup)
  • Steering: Ergonomic Tiller Handle with Twist-Grip Throttle
  • Shaft Length: 15" Short Shaft (suits standard 15-inch transoms)
  • Tilt / Trim System: Factory Hydraulic Power Tilt & Trim (PTT)
Main Features
  • Factory Power Tilt & Trim: Effortless push-button engine tilt and trim adjustment directly from the helm/tiller for fast hole-shots, optimal boat planing angle, and shallow water navigation.
  • Electronic Fuel Injection (EFI): Battery-assisted EFI delivers easy turnkey starting in all weather conditions, seamless acceleration, optimal fuel burn, and smooth, vibration-free idling.
  • High-Output Electric Start: Quick, reliable turnkey ignition with emergency pull-start backup.
  • Advanced CDI Micro-Computer Ignition: Ensures stable spark timing, smooth low-speed trolling, and instant throttle response.
  • Engine Protection Monitoring: Built-in rev limiter, overheat alert, and low oil pressure warning system safeguard your investment.
  • Easy Oil Level Monitoring: Convenient oil dipstick and sight gauge for quick pre-launch checks.
  • Ergonomic Multi-Function Tiller: Solid tiller arm with forward-mounted F-N-R gear shift, throttle friction adjuster, and steering tensioner for effortless handling.
  • Quiet Thru-Hub Exhaust: Discharges exhaust underwater through the propeller hub for ultra-quiet cruising and reduced fumes.
  • Freshwater Flush Port: Built-in engine flushing fitting allows simple garden-hose hookup to rinse saltwater out without running the engine.
  • Thermostat-Controlled Cooling: Regulates operating temperature for extended engine life and reliable all-day running.
  • Safety Lanyard: Clip-on emergency kill switch instantly shuts off ignition if detached.
  • Eco-Friendly: Ultra-low emissions, fully CE and EPA compliant.
Package Includes
  • Parsun 20HP 4-Stroke EFI Outboard Motor (Short Shaft)
  • Integrated Hydraulic Power Tilt & Trim Unit
  • Multi-Function Ergonomic Tiller Handle
  • 24-Litre Heavy Duty Portable Fuel Tank & Quick-Connect Primer Line

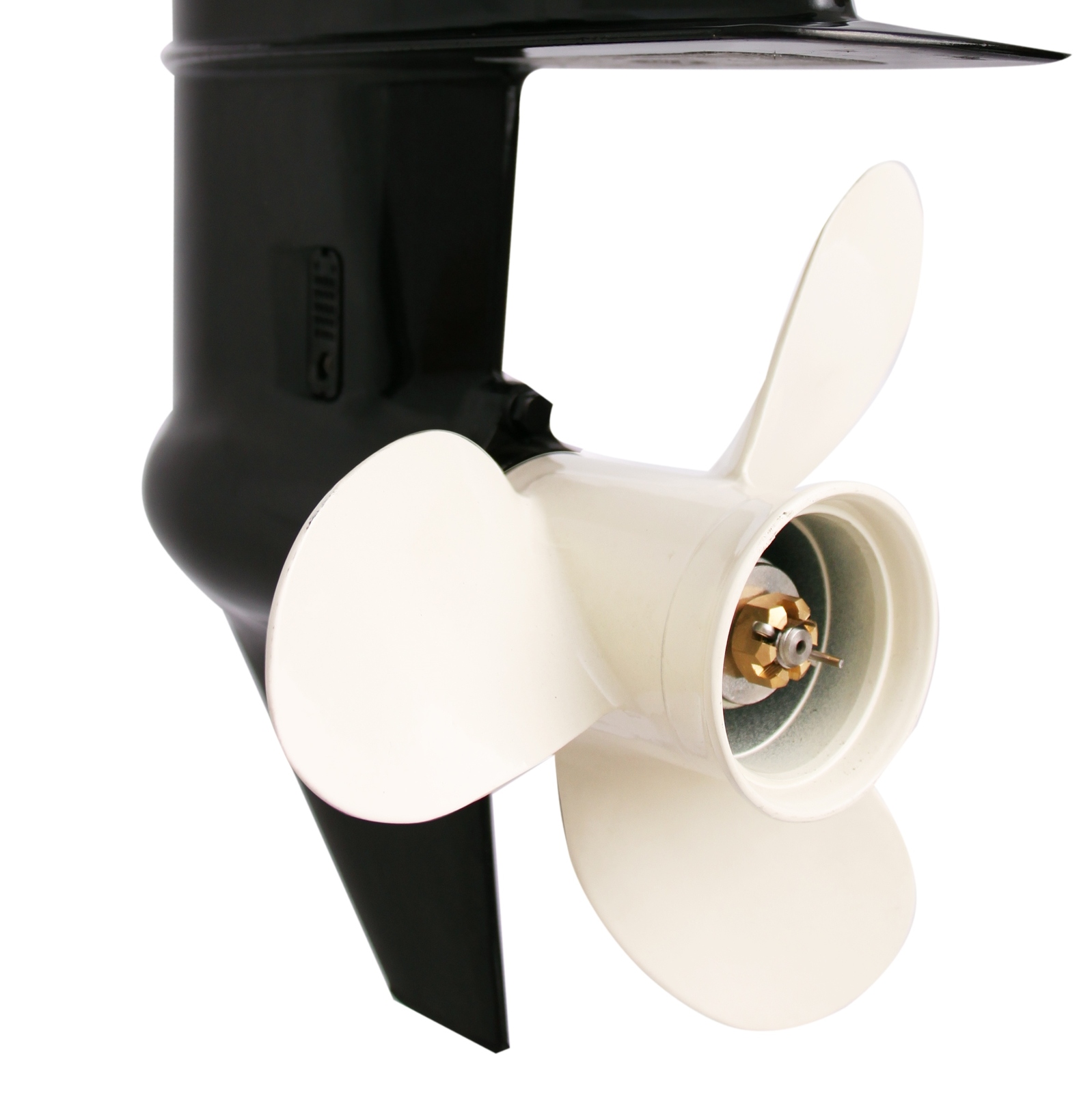

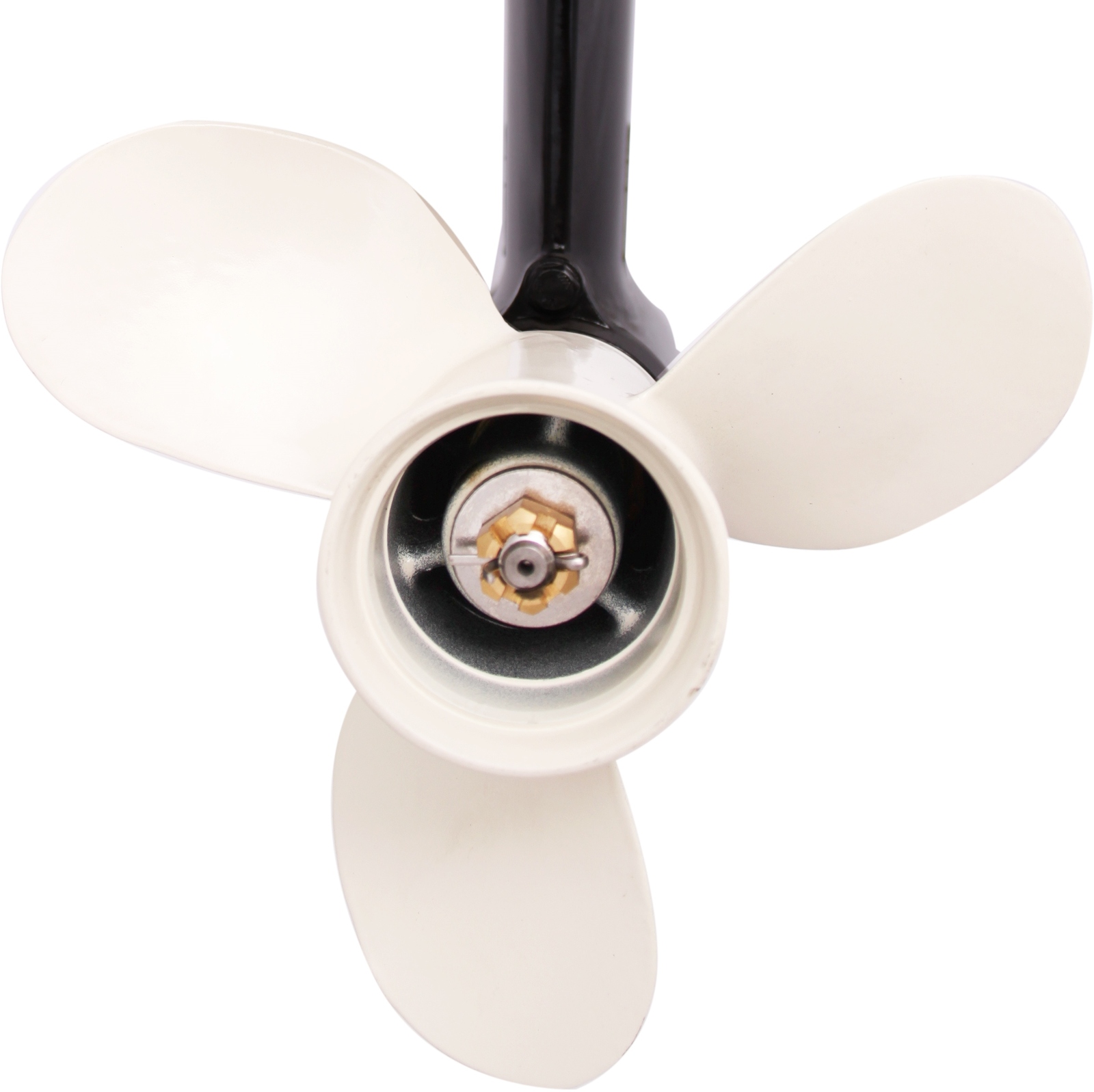

  • Factory Heavy-Duty Aluminium Propeller
  • Emergency Stop Safety Lanyard
  • Tool Kit & Spare Spark Plugs
  • Comprehensive Owner’s Manual & Australian Warranty Documentation
PARSUN 20HP POWER TILT OUTBOARD SPECIFICATIONS
Specification
Details
Engine Type
4-Stroke, 2-Cylinder, SOHC
Displacement
362 cc (22.09 cu. in.)
Bore x Stroke
63.0 mm x 58.1 mm (2.48 in. x 2.29 in.)
Max Output
20 HP (14.7 kW / 14.9 kW) @ 5,500 RPM
Full Throttle Operating Range
5,000 – 6,000 RPM
Fuel Induction System
Electronic Fuel Injection (EFI)
Ignition System
Digital CDI
Starting System
Electric Start (Turnkey) with Manual Recoil Backup
Steering System
Tiller Control
Gear Shift
Forward - Neutral - Reverse (F-N-R)
Gear Ratio
2.08 : 1 (27/13)
Trim & Tilt System
Hydraulic Power Tilt & Trim + Shallow Water Drive
Max Fuel Consumption
~6.9 L/hr
Fuel Tank Capacity
External 24L / 25L Fuel Tank with Primer Hose
Engine Oil Sump Capacity
1.6 Litres (10W-30 / 10W-40 4-Stroke Outboard Oil)
Gearbox Oil Capacity
250 cc – 300 cc
Dry Weight
~53 – 54 kg (incorporating integrated power tilt/trim assembly)
Recommended Transom Height
15 Inches / 381 mm (Short Shaft)
Fuel Requirement
Unleaded 91 / 95 Octane Regular Fuel
Warranty
2-Year Manufacturer Warranty

Package Includes:

  • 20hp Parsun outboard motor
  • Short Shaft
  • Tiller Control
  • Electric Start
  • Power Tilt trim
  • Manual





SKU F20ABWS-T-EFI
Model # F20ABWS-T-EFI
Brand Parsun
Artist / Author 20HP PARSUN OUTBOARD Tiller Control / Short Shaft / EFI (Electronic Fuel Injection) 4-Stroke MOTOR With Electric Start Water Cooled Quite 2YR WARRANTY
Shipping Weight 52.0000kg
Shipping Width 0.800m
Shipping Height 0.800m
Shipping Length 1.500m
Shipping Cubic 0.960000000m3
Unit Of Measure ea
Type 20HP PARSUN OUTBOARD Tiller Control / Short Shaft / EFI (Electronic Fuel Injection) 4-Stroke MOTOR W
Format 20HP PARSUN OUTBOARD Tiller Control / Short Shaft / EFI (Electronic Fuel Injection) 4-Stroke MOTOR With Electric Start Water Cooled Quite 2YR WARRANTY
