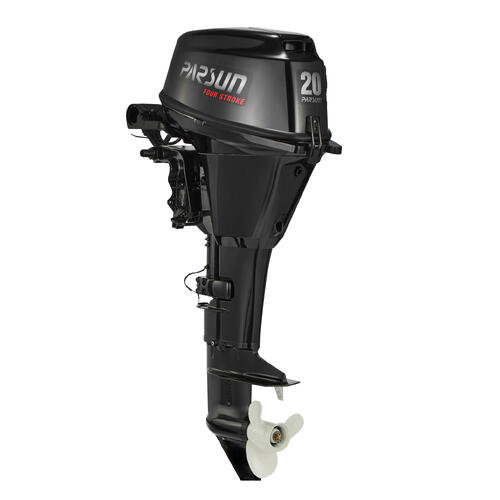

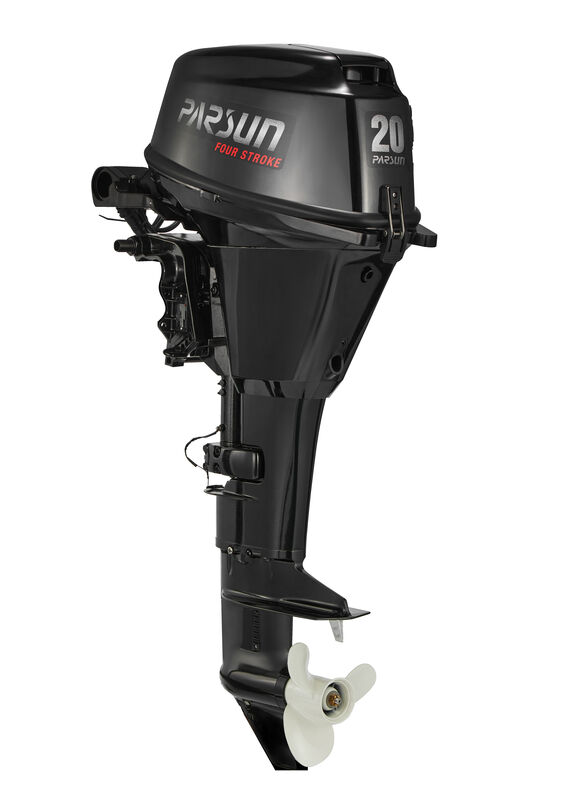

Parsun 20HP EFI 4-Stroke Outboard Motor
Long Shaft, Forward Control, Electric Start & Power Tilt/Trim
Upgrade your on-water experience with the all-new Parsun 20HP EFI 4-Stroke Outboard Motor with Hydraulic Power Tilt & Trim (Model: F20AFWL-T-EFI). Engineered specifically for vessels requiring a 20-inch long shaft transom, this engine delivers commercial-grade reliability, instant turnkey starting, and effortless push-button engine tilt right from the helm control box.
Forget manually lifting or straining your back over high transoms. With integrated factory Hydraulic Power Tilt & Trim, you can fine-tune your boat’s trim on the fly for faster hole-shots, cruise at optimum fuel-burn angles, or tilt the lower unit clear in shallow waterways with the push of a thumb switch on your throttle lever.

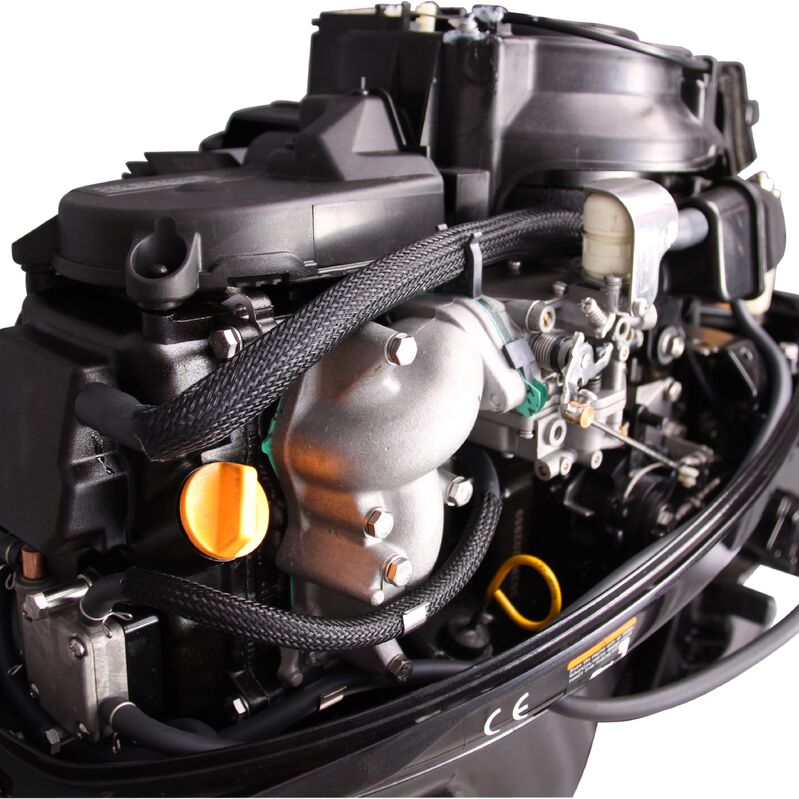

Equipped with a modern digital Electronic Fuel Injection (EFI) system, the twin-cylinder 362cc powerhead delivers instant starting in cold or hot weather, crisp acceleration, whisper-quiet idle, and exceptional fuel economy. Backed by authorized Australian Distributor warranty and full nationwide parts support, it is the ultimate powerplant for steering console runabouts, side-console and center-console aluminium tinnies, inflatable boats, and fiberglass runabouts.
Key Model Highlights
  • Model Code: F20AFWL-T-EFI
  • Shaft Length: 20" Long Shaft (Designed for 508 mm / 20-inch boat transoms)
  • Trim & Tilt: Integrated Factory Hydraulic Power Tilt & Trim (PTT)
  • Starting Method: Key-Turn Electric Start (with emergency manual recoil pull-start)
  • Steering & Shift: Remote Forward Control Box with Integrated Tilt/Trim Switch, Key Switch & F-N-R Shifter
  • Fuel Induction: Electronic Fuel Injection (EFI) – 362cc Twin Cylinder
Main Features & Advantages
  • Integrated Hydraulic Power Tilt & Trim: Effortlessly raise, lower, and trim your outboard on the fly via the control-box-mounted switch. Perfect for clearing sandbanks, boat ramps, and dialing in high-speed planing trim directly from the helm.
  • Remote Forward Control Binnacle: Complete with ignition key switch, emergency kill lanyard, fast-idle warm-up lever, smooth forward-neutral-reverse shifting, and thumb-operated tilt/trim controls.
  • Turnkey Electronic Fuel Injection (EFI): Digital EFI eliminates carburetor gumming, chokes, and hard starting. Delivers smooth acceleration, reduced emissions, and up to 30% greater fuel efficiency.
  • Key-Switch Electric Start with Manual Backup: Instant console starting with an integrated manual recoil cord under the cowl for 100% peace of mind on the water.
  • High-Thrust Long Shaft Design: The 20-inch shaft provides optimal prop submersion for deeper hulls, high-transom tinnies, and center console rigs.
  • Quiet Thru-Hub Propeller Exhaust: Discharges exhaust gases underwater through the prop hub for reduced noise and cleaner running.
  • Engine Protection Sensors: Built-in micro-computer CDI monitors low oil pressure, rev limiting, and engine overheat conditions.
  • Freshwater Flush Attachment: Convenient port lets you hook up an ordinary garden hose to flush salt and sand out without firing up the engine.
  • Australian Warranty & Compliance: Fully compliant with Australian safety and emission regulations, supported by our nationwide dealer and spare parts network.
Package Contents
  • Parsun 20HP EFI Long Shaft Outboard Motor
  • Side-Mount Remote Forward Control Box with Integrated Tilt/Trim Switch & Keys
  • Steering Link Arm (connects engine to standard marine steering drag link)
  • Integrated Factory Hydraulic Power Tilt & Trim System

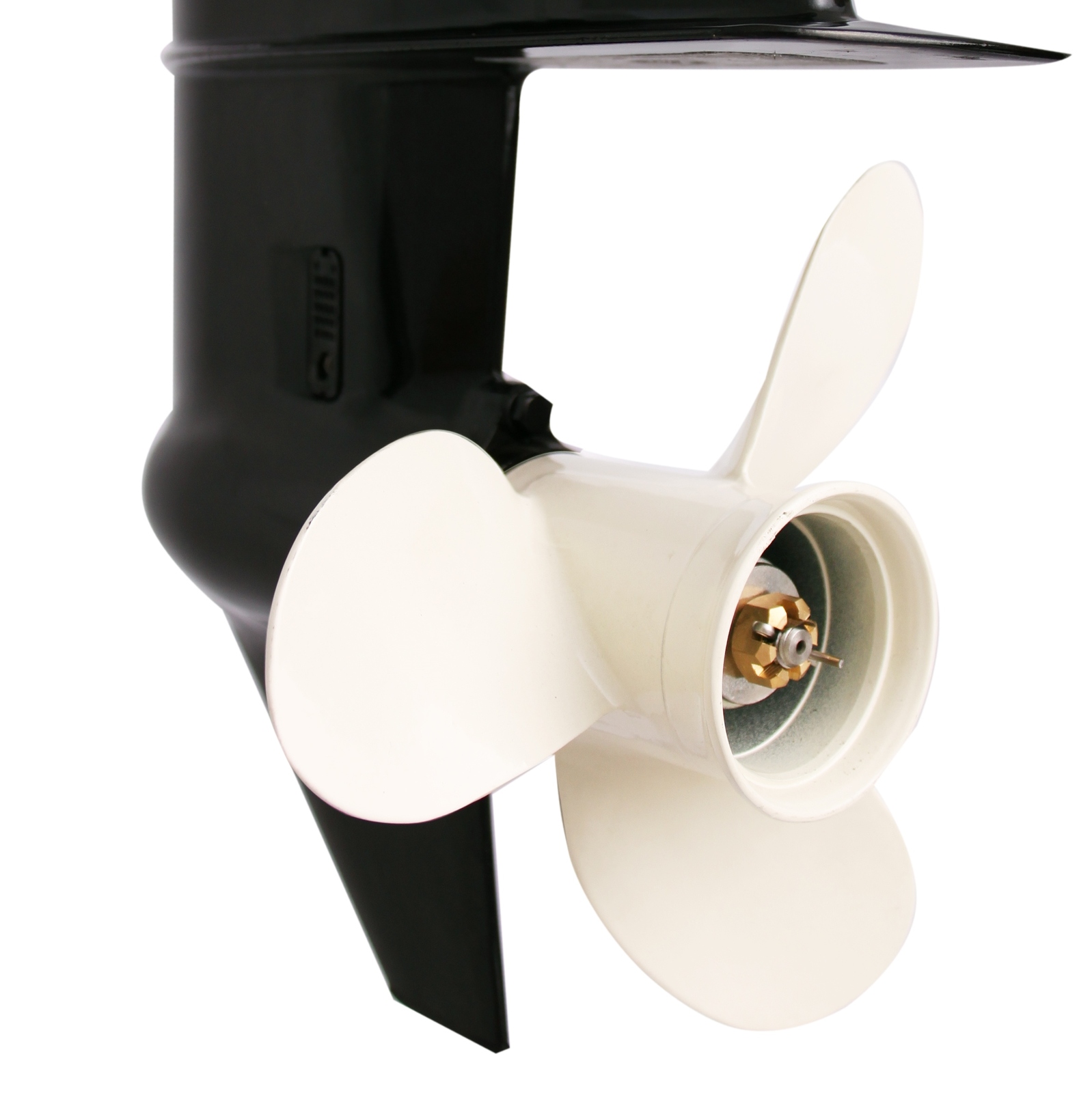

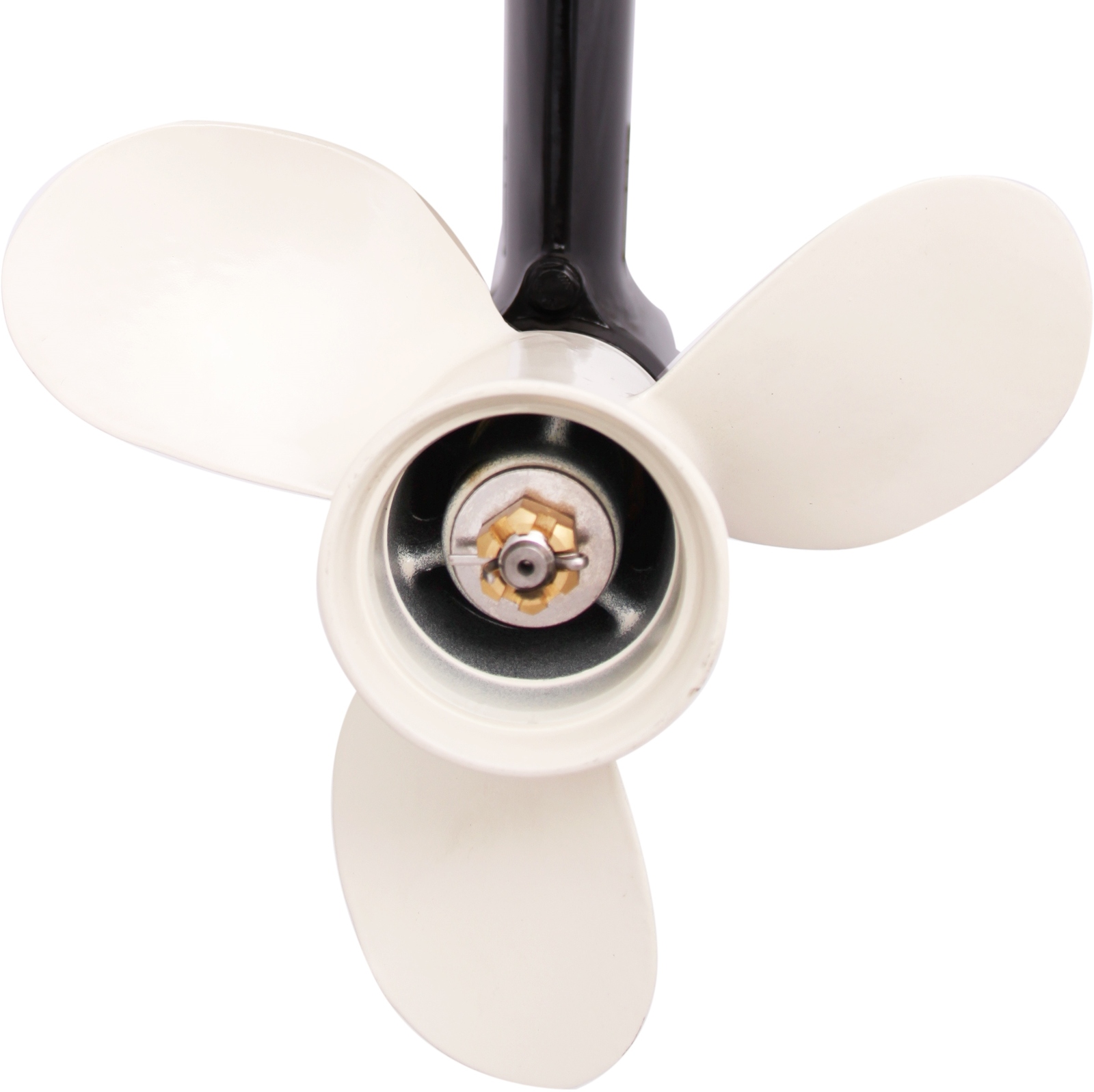

  • Heavy-Duty 3-Blade Aluminium Propeller (Factory Fitted)
  • External 24-Litre Marine Fuel Tank & Quick-Connect Primer Line
  • Emergency Safety Cut-Off Kill Switch Lanyard
  • Tool Kit & Emergency Pull-Start Rope
  • User Manual & Australian Warranty Registration Documentation
Technical Specifications
Specification
Details
Model Code
F20AFWL-T-EFI
Engine Type
4-Stroke, 2-Cylinder, SOHC
Displacement
362 cc (22.09 cu. in.)
Bore x Stroke
63.0 mm x 58.1 mm
Max Output
20 HP (14.7 kW) @ 5,500 RPM
Full Throttle Operating Range
5,000 – 6,000 RPM
Fuel Induction System
Electronic Fuel Injection (EFI)
Ignition System
Digital CDI Micro-Computer
Starting System
Key-Turn Electric Start + Manual Recoil Backup
Steering System
Remote Forward Control (Steering Wheel / Console)
Gear Shift
Forward – Neutral – Reverse (F-N-R on control box)
Gear Ratio
2.08 : 1 (27/13)
Trim & Tilt System
Factory Hydraulic Power Tilt & Trim (PTT)
Transom Height
20 Inches / 508 mm (Long Shaft)
Dry Weight
~55 kg (incorporating integrated PTT assembly)
Max Fuel Consumption
~6.9 L/hr at Wide Open Throttle
Fuel Tank Capacity
External 24-Litre Marine Tank with Fuel Line Included
Engine Oil Capacity
1.6 Litres (10W-30 / 10W-40 4-Stroke Marine Engine Oil)
Gearbox Oil Capacity
~250 cc – 300 cc Hypoid Marine Gear Oil
Fuel Type
Unleaded 91 / 95 Octane
Warranty
2-Year Manufacturer / Australian Master Distributor Warranty

Package Includes:

  • 20hp Parsun outboard motor
  • Long Shaft
  • Forward Control
  • Electric Start
  • Power Tilt trim
  • Manual





SKU F20AFWL-T-EFI
Model # F20AFWL-T-EFI
Brand Parsun
Artist / Author 20HP PARSUN OUTBOARD Forward Control / long Shaft / EFI (Electronic Fuel Injection) 4-Stroke MOTOR With Electric Start Water Cooled Quite 2YR WARRANTY
Shipping Weight 52.0000kg
Shipping Width 0.800m
Shipping Height 0.800m
Shipping Length 1.500m
Shipping Cubic 0.960000000m3
Unit Of Measure ea
Type 20HP PARSUN OUTBOARD Forward Control / long Shaft / EFI (Electronic Fuel Injection) 4-Stroke MOTOR W
Format 20HP PARSUN OUTBOARD Froward Control / long Shaft / EFI (Electronic Fuel Injection) 4-Stroke MOTOR With Electric Start Water Cooled Quite 2YR WARRANTY
