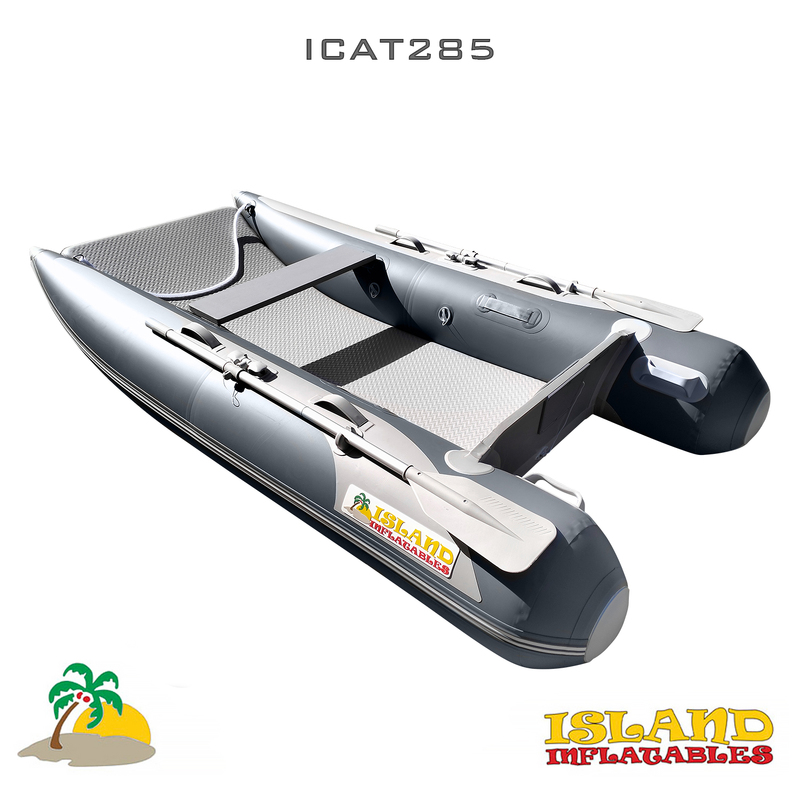

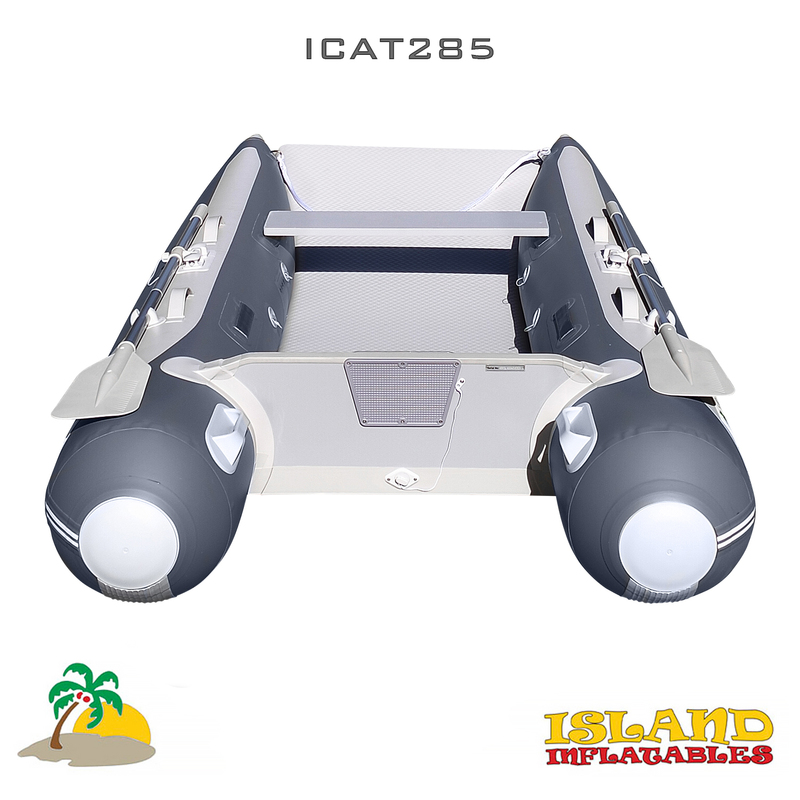

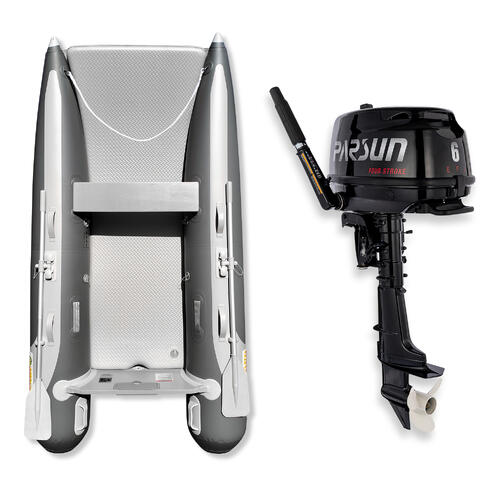

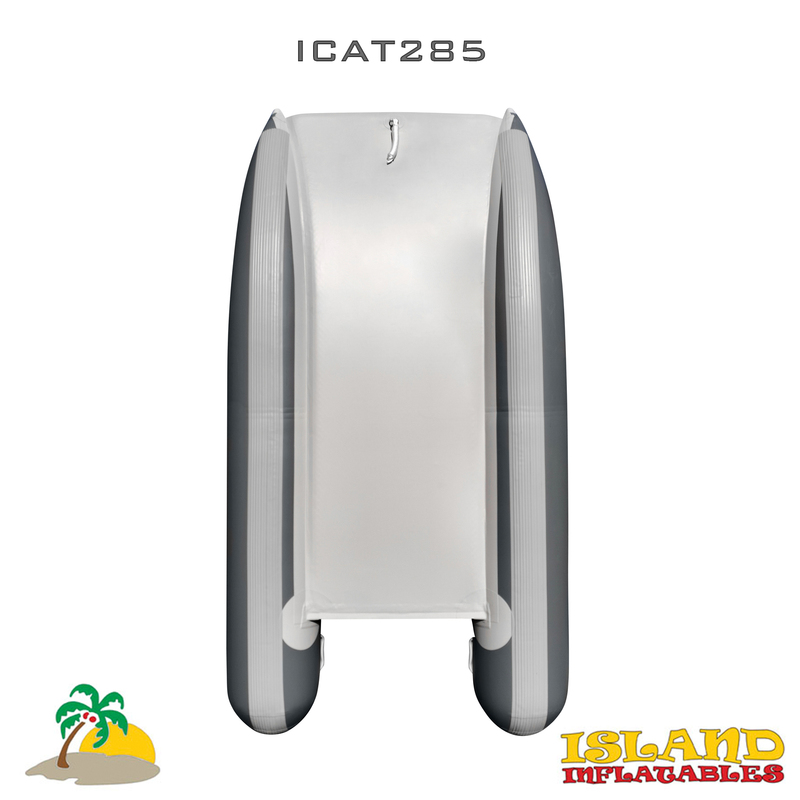

ICAT285: 2.85M Island Inflatable Catamaran

Package with Parsun 6HP Outboard Motor

• Built for the Big Australian Sun: Unlike generic overseas models, these boats are locally developed. We tailor every aspect to withstand Australia's unique marine challenges and high-intensity UV exposure, guaranteeing longevity and superior performance.
• Best-in-Class Fabric: We utilize a premium-grade fabric (1100-denier, 0.9mm thickness) from Valmex, providing unmatched abrasion, puncture, and UV resistance.
• Enhanced Ride Quality: The generously proportioned, oversized tubes provide superior buoyancy, enhancing stability, handling precision, and passenger comfort, resulting in a significantly drier voyage.
• Structural Integrity: Features a heavy-duty, epoxy-sealed, marine-grade plywood transom, reinforced with internal and external mounting plates for secure motor attachment. A conveniently located bilge drain plug simplifies removing incidental water.
• Hull Protection: Full-length, non-scuff rub strakes are fitted to shield the hulls from dock contact, abrasive surfaces, and beaching hazards.
• Dual-Layer Defense: An extra protective layer of the rugged Valmex PVC material is applied to the underside of the tubes, offering enhanced resilience when pulling the boat over rough terrain.
• Integrated Handling: Uniquely positioned internal carry handles are located at the stern, maximising convenience while eliminating the risk of scratching adjacent vessels or interfering with seating space.

Specifications

• Overall Length: 2.85 m (9.35 ft)
• Inside Length: 240 cm
• Overall Width: 150 cm
• Inside Width: 75 cm
• Tube Diameter: 45 cm
• Chambers: 4 + Floor
• Person Capacity: 4 Persons
• Cargo Capacity: 550 kg
• Max Motor Power: 9.8 hp (7.32 kw) @ 5500 rpm
• Boat Weight (Boat/Floor/Oars/Seat): 30 kg
• Floor Options: Air-Deck
• Tube AIR Pressures in Sequence of Inflation:
  • Outside Tubes: 3.6 PSI
  • Inflatable Floor: 12 PSI

Features

• Material: Heavy Duty 1100 D-Teck denier polyester-coated PVC. Weight: 1100 g/m2 Thickness 0.9mm
• AIR-Deck Floor: High-pressure floor for rigid ride and firm standing.
• Double Layer of PVC Material on Underside of Tubes
• 1 Seat
• 2 Internal Rear Carry Handles
• Combination Bow Ring with Mooring Rope
• Non-Marking All-Round Rubbing Strakes
• 24mm Thick Marine Grade Transom with Rubber Capping
• Inside and Outside Motor Plates
• Self-Bailing One-Way Bung / Drain Plug
• 2 Internally Sealed Bulkheads to Equalize Tube Pressures

Package Includes:

• ICAT285 Inflatable Catamaran
• Parsun 5hp Outboard Motor
• Dual-action Action pump
• Carry Bag
• Set of Oars
• 1 Seat
• Repair Kit

________________________________________________________

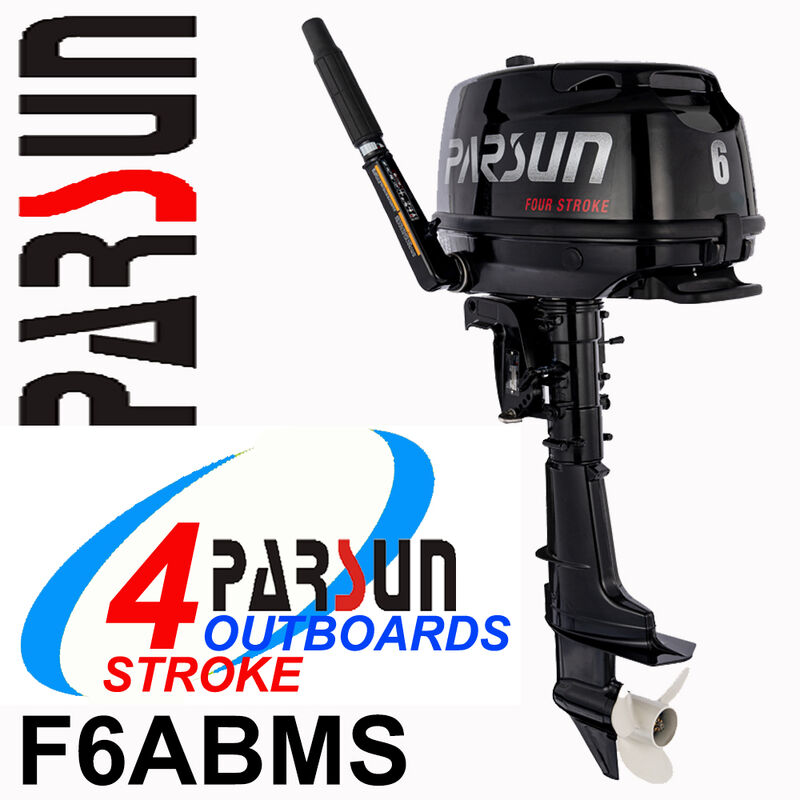

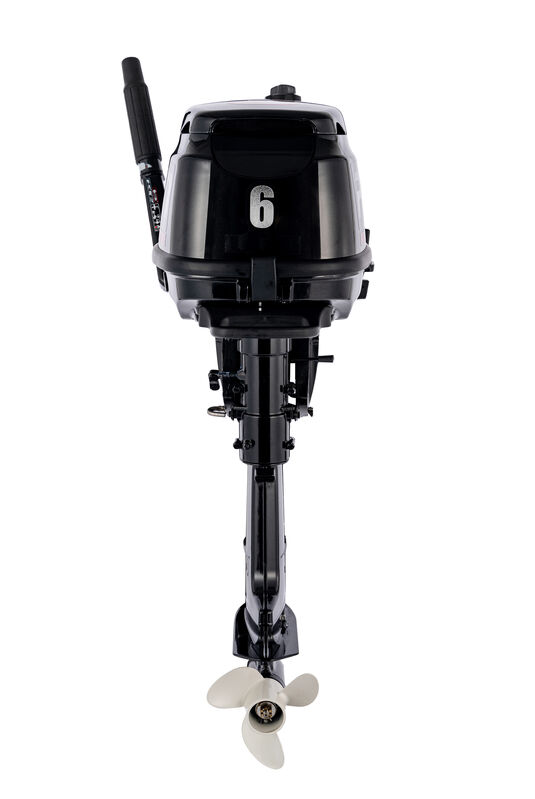

• Exceptional Portability: Weighing in at only 27 kg (Short Shaft), its lightweight design and large, integrated carry handles make transport, mounting, and pairing with the highly portable ICAT285 effortless.
• Oil-Leak-Free Storage: Features a sophisticated oil-leak prevention system, allowing you to store the engine on its front or either side without worrying about oil leakage—perfect for transporting with your rolled-up ICAT285 in a car boot or storing in a tight shed space.
• Easy Starting: Equipped with a reliable CDI Ignition System for trouble-free starting in all conditions, along with an auxiliary prime pump for quick starts after long-term storage.
• Thru-Propeller Exhaust: The exhaust routes through the propeller hub, ensuring a quieter operation and reduced vibration—essential for maximising the comfort of the twin-hull ICAT285 design.
• Integrated Fuel Tank: Comes standard with a convenient 1.3 L built-in fuel tank, with the added flexibility of connecting an optional external fuel tank for extended trips on your ICAT285.

Category	Specification	Details
Engine	Maximum Output	6 HP / 4.4 kW @ 5000 r/min
	Engine Type	4-Stroke, 1-Cylinder, OHV (Overhead Valve)
	Displacement	148 cc
	Full Throttle RPM Range	4500 – 5500 r/min
	Ignition System	CDI (Capacitor Discharge Ignition)
	Cooling System	Water Cooled (Thermostat Controlled)
Fuel & Oil	Fuel Tank Capacity	Built-in 1.3 L (with external fuel tank fitting)
	Max. Fuel Consumption	2.3 L/h
	Recommended Fuel	Unleaded Petrol (87% Octane or higher)
	Engine Oil Capacity	0.6 L
	Gear Oil Capacity	195 cc (approx. 6.6 fl. oz.)
Drivetrain	Gear Shift	F-N-R (Forward-Neutral-Reverse)
	Gear Ratio	2.15 (28/13)
	Steering System	Tiller Control
	Trim & Tilt	Manual (Multi-position with Shallow Water Drive)
Dimensions	Dry Weight (Short Shaft)	27 kg (approx. 59 lbs)
	Dry Weight (Long Shaft)	28 kg (approx. 61 lbs)
	Recommended Transom Height	15 inches (Short Shaft) or 20 inches (Long Shaft)

Island Inflatables Boats: Australia's Favorite Inflatable Boat Since the Summer of 2000

Contact us today to get your ICAT285 with the Parsun 6HP outboard motor and start your journey on the water!
