Lowrance Sonic Hub 2

Marine Audio server

The ultimate marine audio entertainment system, the Lowrance®SonicHub2 features integrated Bluetooth®, allowing you to stream music ─ including Pandora® ─ from a smartphone or tablet. The system has an integrated AM/FM antenna, supports playback from a USB drive ─ all with full control from your HDS display.

When connected to a NMEA 2000® network, the SonicHub2 allows you to control onboard music components from any HDS Gen2 Touch or Gen 3 display on the network. The system is compatible with the standard NMEA 2000 audio/entertainment protocol, features two USB ports for connecting and charging multiple devices, supports USB video playback and comes with a pair of 200W, 2-Way, 6.5" speakers. The SonicHub2 works with Android devices and IOS devices with the Lightning connector.

FEATURES:

  • Streams Bluetooth® audio ─ including Pandora® ─ from a smartphone or tablet
  • Integrated support for Pandora® Internet Radio
  • 50W x 4 amplifier
  • NMEA 2000® connection using the newly adopted standard NMEA 2000 audio/entertainment protocol
  • Dual USB ports for connecting and charging multiple devices
  • Video output via Composite RCA for playing video files from a USB drive
  • Pre-amp Zone 3 output
  • Pre-amp subwoofer output
  • Dual Stereo AUX input (AUX1, AUX2)
  • Music control for up to two individual zones (one zone)

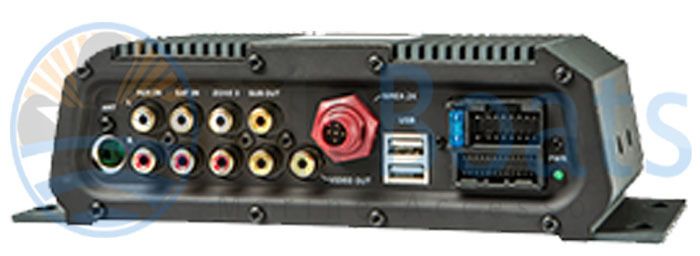

SonicHub2™ server
 photo Lowrance Sonic Hub 2 SonicHub2 Mr Boats_zpsicmjyis6.jpg

6.5" 4 Ohm, 200W 2-way marine grade speakers
 photo Lowrance Sonic Hub 2 SonicHub2 speakers Mr Boats_zpsydxphtiq.gif

SPECIFICATIONS:

Output Music Power per Channel: 50W
Total Output Music Power:           200W total, 50W x 4
Power Supply:                            10 to 16VDC
Inputs:                                      AM, FM, iPOD, USB, Aux, Mic, Bluetooth streaming
Outputs:                                    Zone 1 speaker, Zone 2 speaker, Zone 3 RCA, Sub                                                    Out RCA

What’s in the box:

  • Lowrance SonicHub2™ marine audio server
  • 2 x Lowrance 6.5" marine speakers
  • 6ft / 1.8m NMEA drop cable
  • NMEA T-connector
  • Power / Speaker harness
  • Installation Hardware and Manual

 *AM/FM antenna is not suppied

SKU 000-12301-001
Barcode # 9420024139295
Brand Lowrance
Shipping Weight 4.0000kg
Shipping Width 0.190m
Shipping Height 0.460m
Shipping Length 0.200m
Shipping Cubic 0.017480000m3
Unit Of Measure ea
