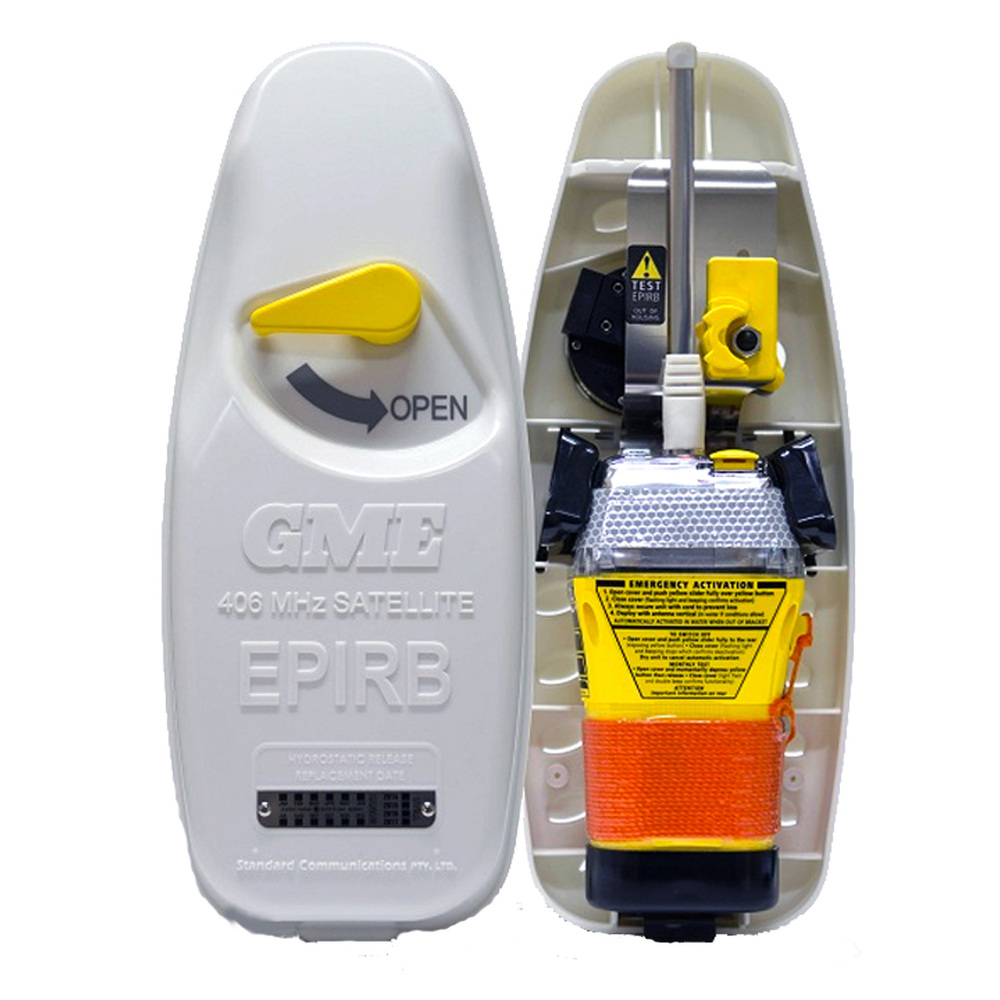

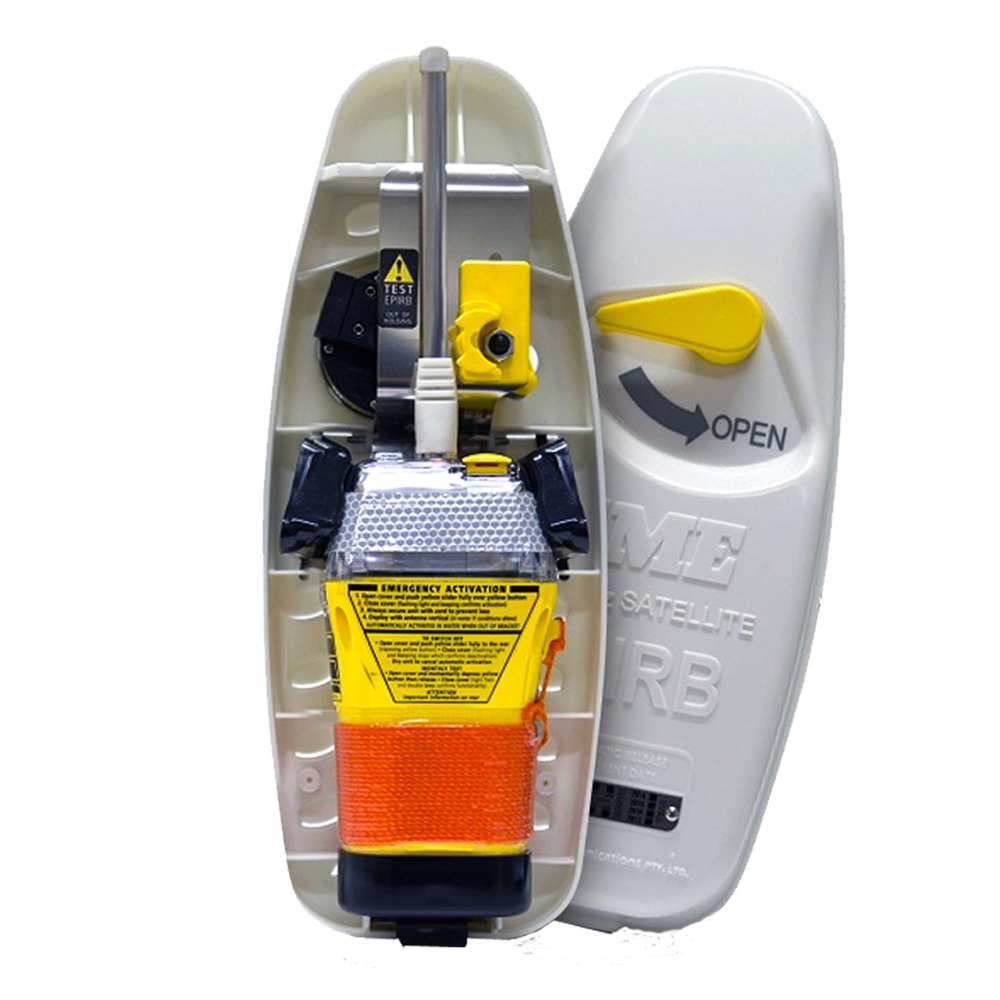

GPS Enabled EPIRB

Foat Free - Water Activated


The GME MT603FGAUS Float Free -  Water Activated EPIRB is a GPS Enabled EPIRB which means greater accurancy and faster retrevial times for the search and rescues teams.

The key benefits of a GPS equipped EPIRB are:

Product information:

  • The MT603FG is the most advanced MEOSAR-ready 406MHz digital EPIRB on the market today.
  • Designed, engineered and manufactured in Australia, the MT603FG has obtained international Cospas-Sarsat approval.
  • Boasting the latest advances in emergency beacon technology, the MT603FG ensures the safety of your vessel and crew in emergency situations, regardless of your location.
  • The MT603FG is a Category 1 EPIRB, which means the unit will automatically deploy from the supplied ‘Float-Free’ housing via a hydrostatic release unit at a depth of 1.5 – 4 metres, with the beacon activating upon contact with water.
  • The EPIRB may also be manually removed from the housing and activated by the user.
  • The MT603FG features an integrated 66 channel GPS receiver, delivering greater position accuracy and faster location fix than previous models.
  • Boasting zero warm-up digital technology, the MT603FG acquires and transmits accurate latitude/ longitude and personal identification information to rescue authorities as soon as possible.
  • In combination with a high-intensity, solid state strobe light and auxiliary 121.5MHz VHF homing transmitter, the MT603FG is the ultimate in emergency beacon technology.

Other Features:

  • GPS Internal 66 channel high performance receiver with quadrifilar helix antenna
  • Retention Lanyard Buoyant type approximately 5.5m long
  • Reflector SOLAS retro-reflective tape
  • Solid-State Strobe High reliability solid state design – exceeds IMO requirements
  • Antenna Flexible, self straightening stainless steel design
  • Bracket Quick release mechanism (manual)
  • Dimensions: 108(W) x 89(D) x 261(H) mm



  • Float-free activation - Hydrostatic release.
  • 66 channel GPS receiver.
  • Zero warm-up Digital Technology.
  • 48 hours minimum operating time.
  • High-intensity, solid state strobe light.
  • 121.5MHz VHF homing transmitter.
  • Cospas-Sarsat certified for worldwide operation.
  • MEOSAR-ready.
  • 6 Year warranty.
  • 6 Year battery life

Mechanical Specifications

  • Operating: -20˚C to +55˚C
  • Storage: -30˚C to +70˚C
  • Weight: 555g (plus 1000g for bracket)
  • Compass Safe Distance: 0.8m (inc. mounting bracket) from magnetic navigational device when inactive.
  • Dimensions: 155 (W) x 390 (H) x 110 (D) mm max. when stowed in bracket.
  • Materials: UV stabilized plastic chassis.
  • Antenna: Flexible self straightening stainless steel design
  • Type: Internal 66 channel high performance receiver
  • Antenna: Quadrifilar helix antenna.


Modes of Operation

Activated: UHF (406) and VHF (homer) complete with high intensity strobe and audible activation alert.

Self Test: Comprehensive internal diagnostics with visual and audible operator feedback. UHF test message (inverted synchronization compatible with portable beacon testers).



  • Activation: Manually by operator and automatic when deployed in water.
  • Duration: 48 hours minimum.
  • Transmission: 121.5 and 406 MHz distress signals commence 60 seconds after activation.
  • Delay: None required (due to digital frequency generation)
  • VHF: 121.5 MHz; 50 mW ± 3 dB; swept tone AM.
  • UHF: 406.037 MHz; 5 W ± 2 dB PSK (digital)
  • Light: 20 flashes/minute at > 0.75 cd effective intensity.



  • Replacement Period: Prior to expiry date marked on case.
  • Replacement Method: Service centre or factory only (non-user replaceable)
  • Chemistry: LiSO2 (2.4g Lithium per cell)
  • Configuration: 2 'D' type cells


  • Weight: 555g (plus 1000g for bracket)

Supplied with:

  • MT603G Class 2 406MHz EPIRB
  • Float-free housing (Category 1)
  • Mounting hardware
  • Instruction manual


Package Includes:

  • Auto release cradle
  • Manual activation self adhesive instructions
  • Instruction manual



Model # MT603FGAUS
Barcode # 20035053048
Brand GME
Artist / Author GME MT603FGAUS - GPS Version - EPIRB 406MHZ Float Free - Water Activated Safety Beacon
Shipping Weight 0.9000kg
Shipping Width 0.260m
Shipping Height 0.110m
Shipping Length 0.090m
Shipping Cubic 0.002574000m3
Unit Of Measure ea
Type GME MT603FGAUS - GPS Version - EPIRB 406MHZ Float Free - Water Activated Safety Beacon
Format GME MT603FGAUS - GPS Version - EPIRB 406MHZ Float Free - Water Activated Safety Beacon PLB
